Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer
Raw material: PVC, Teflon, Silicone, Low halogen, Fiber glass, etc
Cable size: 5 mm O.D.
Cutting length (L): 0.1 - 999999 mm
Cutting length accuracy: 0.002 x L
Single wire: YES
Multi-core cable: Round
Outer jacket stripping length:
Leading (right) side: 250 mm [partial stripping]
Trailing (left) side: 100 mm [partial stripping]
Inner core stripping length: 30 mm at dual-ends
Middle strip: 13 sections
Production rate: 1300 pcs/h by 100mm wire length [multi-layer stripping]
Data library: 100 programs
Display: 4.3" color touchscreen, English/Chinese [other languages on request]
Compatible peripherals: Cable unwinder, robot arm, conveyor belt
Power supply: AC 110-220 V ± 10%, 50/60 Hz
Air supply: 0.4-0.7 MPa (clean and dry air)
Dimensions:
Machine: L 460 x W 470 x H 950 mm
Wire straightener: 350 mm
Weight: 78 KG

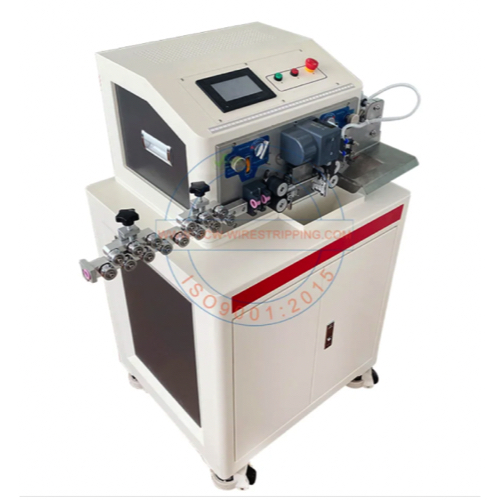

• Freestanding floor model
• Scrap jacket collector keeps clean workshop
• High performance on processing multicore cable
• High-speed up to 1300 pcs/h with stripping double ends
• Round multi-conductor cable up to 5mm OD
• Applicable to thermal transfer printer
• Automated length calibration
• Fully programmable model
• Cable run-out sensor
