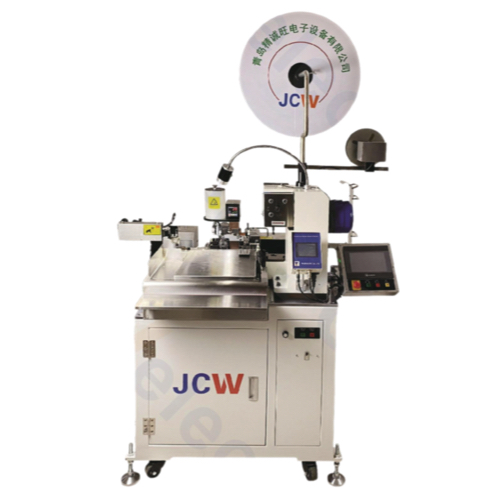

JCW JCW-CST07B Automatic Servo Motorized Wire Crimping Machine (0.03-2 mm², 18-99999 mm, 20 KN)

Function: Wire pre-feeder, Single / Dual-end strip, Single-end crimp, Cut depth, Stripping length, Twisting length, Tinning depth, Crimp position

Wire cross-section: 0.03-2 mm² (AWG 32-14)

Cutting length: 18-99999 mm

Stripping length

Front side: 0.1-8 mm Rear side: 0.1 - 18 mm

Twisting length: 2-10 mm

Tinning length: 1-10 mm

Crimping force: 20 KN (2.0 tons)

Production rate: 3200 pcs/h by 50mm cutting length

Rated power: 3000 W

Power supply: AC 110V-220V ± 10%, 50/60Hz

Air supply: 0.5-0.7 MPa [Clean and dry air]

Dimensions: L 1800 x W 900 x H 1450mm

Weight: 400KG
