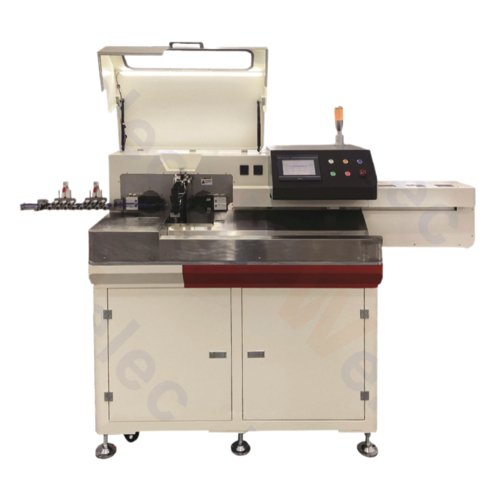

JCW JCW-CST22 Fully Automatic Wire Stripping to Tinning Machine (AWG 30 - AWG 16, 45-1000 mm, 2-15 mm)

Stripping length:

- Front side: Max 12 mm [Customizable]

- Rear side: Max 18 mm [Customizable]

Wire range: AWG 30 - AWG 16

Cutting length (L): 45-1000 mm [Other lengths on request]

Tinning length: 0.5-18 mm

Twisting length: 2-15 mm [Customizable]

Production rate: 9500 pcs/h by 100mm cutting length

Detector: Wire run-out, Wire knot, Air pressure, Heating

Optional peripherals: Wire unwinder, Conveyor belt

Power supply: AC 110V-220V±10%, 50/60 Hz

Rated power: 2500 W

Air supply: 0.5-0.8 MPa [Clean and dry air]

Dimensions: L 1960 x W 750 x H 1400 mm

Weight: 450 KG
