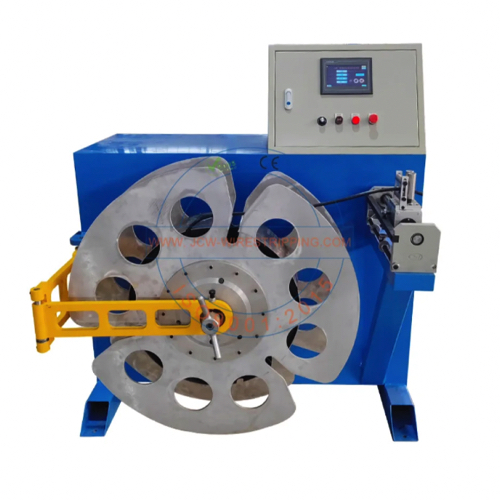

JCW JCW-WB300 Powered Cable Winding Machine (700 mm, 70-150 mm)
Manufacturer: JCW Model: JCW-WB300 - Contact
Function: Cable winding and laying, cable roll, cable drum, winding speed, load 200 KG, emergency stop button
Max Roll O.D.: 700 mm
Roll Inner Diameter: 300 mm [Optional 200 / 250 / 500 mm]
Roll Width: 70-150 mm
Max Drum O.D.: 700 mm [Customizable]
Max Load Weight: 200 KG
Rated Power: 5.5 KW
Display: 7" color touchscreen, English / Chinese [Other languages on request]
Compatible Peripherals: Cable measuring device, cable prefeeding machine
Measuring Accuracy: 2‰
Measuring Display: Electronic, mechanic
Machine Color: Customizable
Power Supply: 3 x 380V AC
Details
• Robust frame, compact design
• Universal for cable roll and cable drum
• Precise length measuring
• High-speed winding, neat laying
• Customizable for specific requirements
