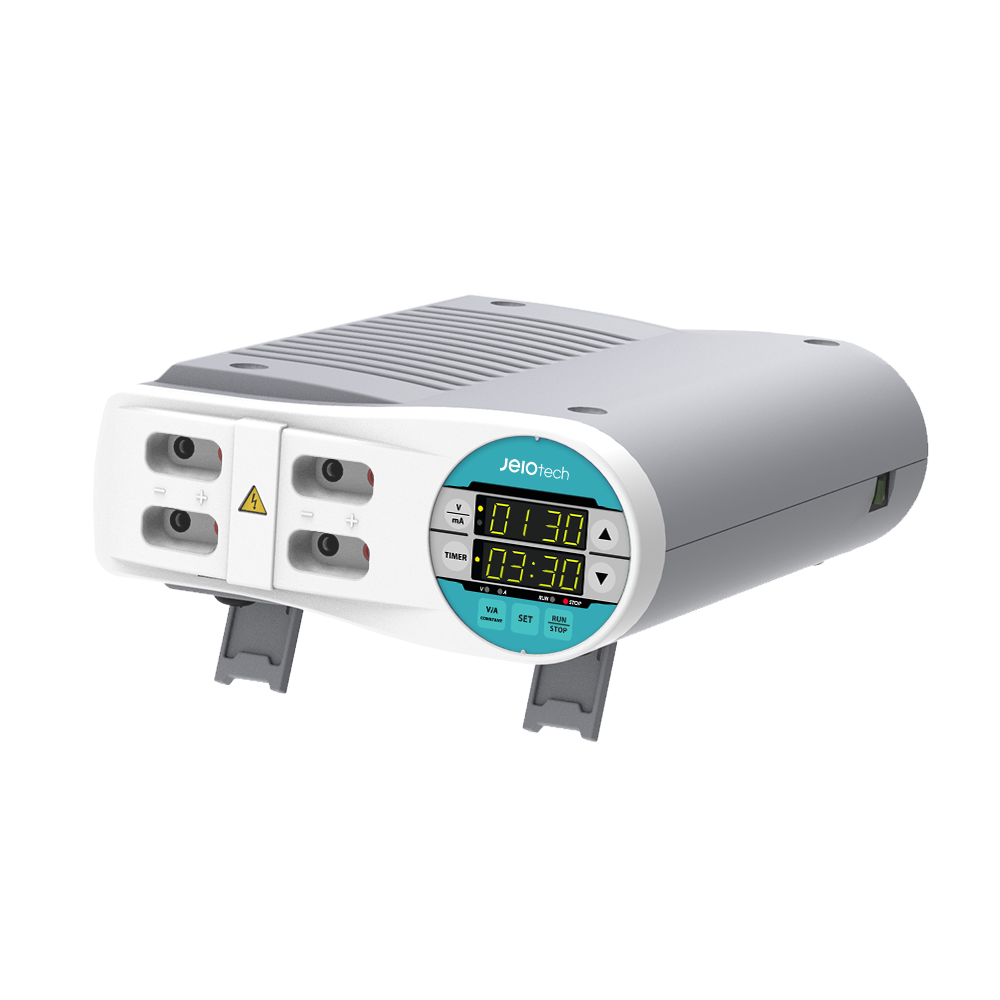

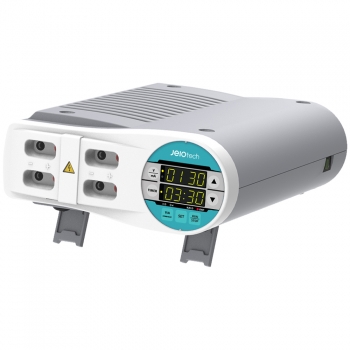

JEIOtech EPS-300 Power Supply for Electrophoresis System

Timer: 1min to 99hr 59min

Display: 7-segment 4 digit LED, 2 line

Output range: 5~250V, in 1V increments 10mA~3000mA, in 10mA increments (Max. 300W)

Type of output: Constant voltage mode, constant current mode

Output terminals: 4 pair recessed banana jack in parallel

Net weight (kg /lbs): 2.5 / 5.51

Operating conditions: 0~40℃ (32~104℉), 0~80% RH

Pause/resume function: Yes

Current consumption (A): 4.0/1.7A at max voltage & max power

Electrical requirement (VAC, Hz): 100-240VAC, 50/60Hz

Dimensions (W x D x H, mm / inch): 240 x 310 x 100 / 9.45 x 12.2 x 3.94
