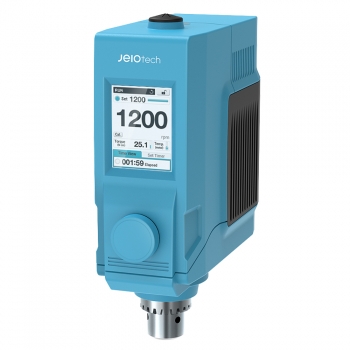

JEIOtech MSH-0512 Overhead Stirrers

part_type: KR Plug

Speed control: PID feedback control

Speed range (rpm): 50 to 1,200

Torque, Max. (N·cm): 41.6

Power consumption (W): 1.5 A

Electrical requirements: AC 100 to 240V, 50/60Hz with power adapter

Viscosity, Max. (cP) 1): 5,000 (~1,200rpm) 10,000 (~1,200rpm) 30,000 (~1,200rpm) 50,000 (~700rpm)

Chuck range (mm / inch, dia): 3 to 10 / 0.1 to 0.4

Material - Body / Cover / Motor: Powder coated aluminum / Polypropylene / BLDC

Motor rating input / output (W): 71 / 48

Protection class (DIN EN 60529): IP30

Stirring capacity, Max. (L, H2O): 100

Dimension - Net weight (Kg / lbs): 3.1 / 6.8

Dimension - Overall (W×D×H) (mm / inch): 80x185x235 / 3.1x7.3x9.3
