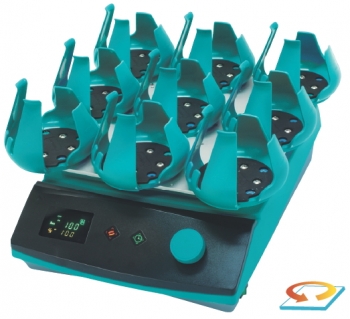

JEIOtech CMS-350 Mini Shaker

Display: VFD

part_type: KR Plug

Control system: PID feedback control

Shaking system - Timer: 1min. to 99hr. 59min.

Electrical requirements: AC 100 ~ 240 V, 50 / 60 Hz

Shaking system - Motion type: Orbital

Dimension - Net weight (kg / lbs): 8 / 17.6

Shaking system - Speed range (rpm): 50 to 300

Dimension - Tray (W×D) (mm / inch): 276×276 / 10.87×10.87

Shaking system - Accuracy at 100 rpm: ±5

Shaking system - Max. load (kg / Ibs): up to 5.2 / 11.46

Dimension - Platform (W×D) (mm / inch): 250×250 / 9.8×9.8

Dimension - Body 1) (W×D×H) (mm / inch): 249×325×109 / 9.8×12.8×4.3

Shaking system - Orbit size (mm / inch, dia): 13 / 0.51
