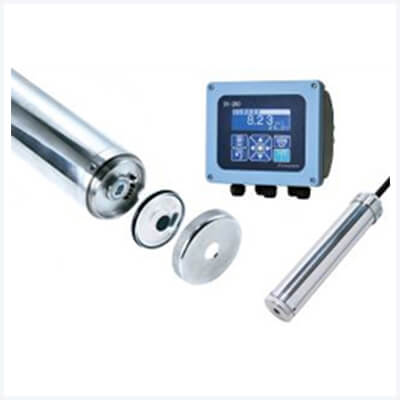

JFE OD-10 Optical Dissolved Oxygen Meters (0 ~ 20.00 mg/L, 0 ~ 20.00ppm)

Measurement system: Optical（Light emission time measurement method)

Measuring range:

Dissolved oxygen concentration: 0 to 20.00 mg/L, 0 to 20.00ppm

O2 Saturation: 0 to 200.0%

Water temperature: 0 to 50.0℃

Measuring accuracy:

Reproduibility: ±2%F.S.

Repeatability: ±0.5%F.S.

90% response time: <30sec

Flow speed: Not required

Measuring accuracy (water temperature): ±0.2℃

Calibration method:

Zero calibration: Calibration using zero water

Span calibration: Atmospheric calibration, Saturated water calibration, Comparative calibration

Operating temperature range: 0 to 50℃ (No freezing allowed)

Water pressure resistance: 1MPa

Material: SUS316

Weight: Approx. 2.4kg(including sensing membrane, 10m cable)
