Basic Accuracy: 0.1% Reading + 2 Digits
Display Range: 0.01mΩ — 1.9999K
Test Current: 100mA, 10mA, 1mA, 100μA, 10μA, 1μA
Range: 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ
Range Resolution: 10μΩ, 100μΩ, 1mΩ, 10mΩ, 100mΩ
Measurement Speed:
Fast: 10 meas/sec
Slow: 2.5 meas/sec
Range Mode: Auto, Hold
Trigger Mode: Internal, Manual, External
Function: Upper/Lower Limit, Pass or Failure Judgement, Range Locking, Reset, Power-Down Data Protection
Working Temperature and Humidity: 0℃ — 40℃, ≤90% RH
Power Requirements:
Power Supply: 198V — 242V AC, 47.5Hz — 52.5Hz
Power Consumption: ≤30 VA
Size and Weight:
Dimensions: 260mm (W) × 280mm (D) × 85mm (H)
Weight: Approximately 3.3 kg
Manual
Product introduction

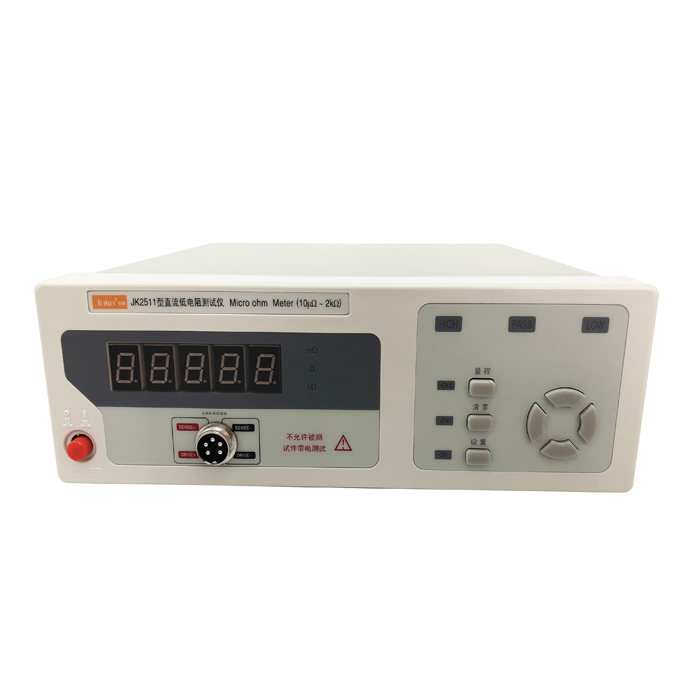

JK2511,JK2512 DC low resistance tester is an intelligent, wide range, precise DC resistance testing instrument, which is suitable for copper resistance of transformer and inductance coil, contact resistance of relay, switch, contact resistance of connector, wire resistance, contact resistance of element solder, electric resistance of printed board and welding hole, metal flaw detection and so on. Used in the production line, you can use the HANDLER interface and GPIB interface (optional) good / bad product output signal, in order to improve the automation of production line testing ability.
Features
●Fast test speed
●Simple operation
●Direct reading
●High precision and cost-effective
●Small size
Application
The whole series of DC low resistance tester is stable and easy to use. It is suitable for copper resistance of transformer and inductance coil, contact resistance of relay, switch, contact resistance of connector, wire resistance, contact resistance of element welding spot, printed board line and welding hole resistance, metal flaw detection, etc.
