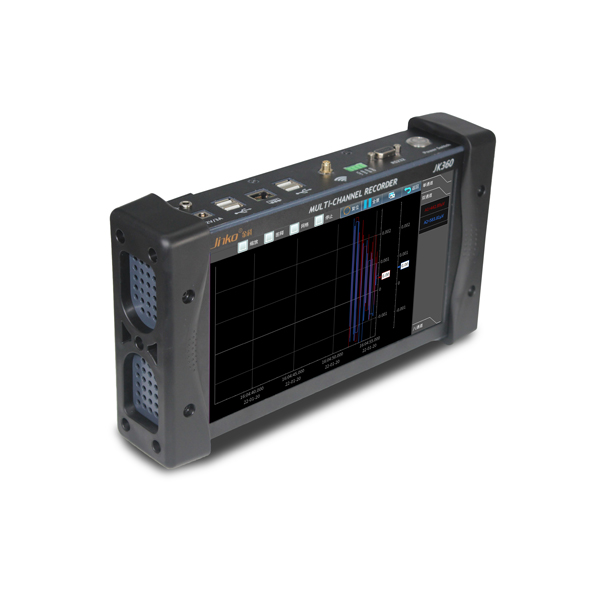

JINKO JK360-96 Multichannel Data Recorder (96CH, 48 CH, 0.001mV ~ 100.00V F.S.)

Analog channel: 72CH ( two-wire ) 36CH (Three-wire/ Four wire)

Input mode: Photorelay scanning mode, all-channel isolated input, balanced input

Mode input terminal shape: Plug-in terminals

Measuring parameter: Temperature, humidity, pressure, flow, gravity, heat flow, wind, etc.

Measuring Range:

Voltage: 0.001mV ~ 100.00V F.S., maximum resolution 1µV

Thermal resistance: Type: PT100, PT1000

Thermocouple: Type: K, J, E, T, R, S, B, N

Current: 0.001mA - 20mA, maximum resolution 1µA

Resistance: 0.0001Ω ~ 99.99MΩ

Logic function input:

Number of channels: 12

Maximum allowable voltage: 24V Cat I

Sampling Rate: Max. 1ms

Pulse Count/Frequency Test: 0-500k

Digital filter: Off, 2, 5, 10, 20, 40 (smooth filter)

Sampling rate: 1ms - 1h, 1ms to 20mn V ＞ 50mV, 2ms to 20mn V ≤ 50mV, thermocouple & Pt100/Pt1000

A/D converter: Method: ΔΣ method, 24 Bit (effective resolution: about ±1/40000 in the range)

Voltage: ±0.1% of F.S. (full range)

Alarm output:

Quantity: 12 alarms (A, B, C, D)

Output level: 0-12V

Trigger: 5 (Rising edge, falling edge, rising or falling edge, high level, low level)

Internal storage: 1TB Built-in solid state drive

USB interface: 4

Ethernet: Twisted pair of RJ45

Wi-Fi: Built-in Wi-Fi module can be connected to JINKO cloud platform

Display: 10 inch TFT LCD touch screen, backlight, 1024*600

Power supply: 10V/4A max, with main adapter (100/240VAC)

Battery: Factory option, non-removable, lithium battery

Battery standby: 15 hours in standby mode, 10 hours in non-standby mode

Operating temperature: 0°C - 40°C, 80% RH (no condensation)

Storage temperature: -20°C - 60°C

Size: 210*295*105mm

Weight: 2.5kg

Safety: CAT I 100V, in accordance with IEC61010-1

Accessories: 100/240V main adapter, manual (CD-ROM), 1 piece of 25-pin male connector, stylus, rag, screwdriver
