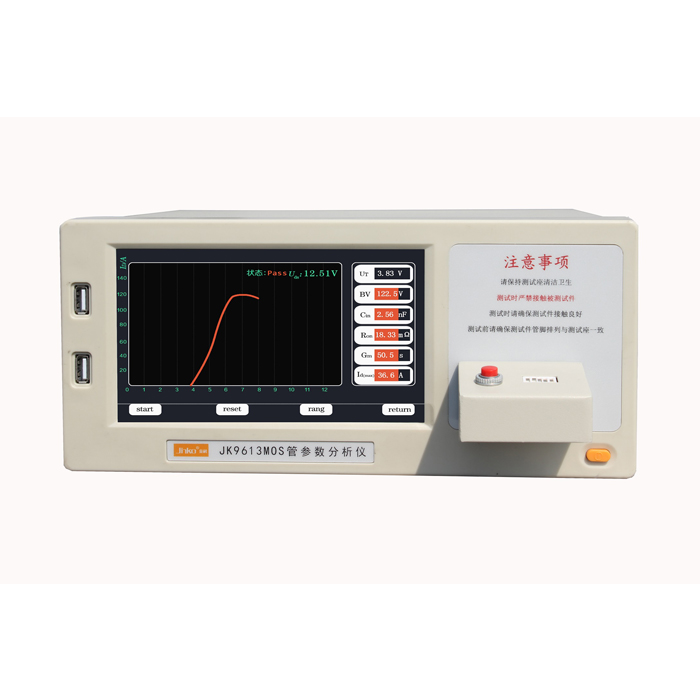

JINKO JK9613 MOS Tube Tester (10-12V)
Manufacturer: JINKO Model: JK9613 - Contact
Voltage V:
Range: 10-12V
Accuracy: 5%
On-Resistance Ron:
Range: 0~999mΩ
Accuracy: 8%
Transconductance Gm:
Range: 0~99.9s
Accuracy: 7%
Withstand Voltage Bv:
Range: 0-1000V
Accuracy: 5%
Open Voltage Ut:
Range: 0~12.0V
Accuracy: 5%
Interelectrode Capacitance:
Range: 0~99.9
Accuracy: 7%
On-State Maximum Current:
Range: 0~129.9
Accuracy: 7%
JK9613 uses high-precision AD to meet the measurement accuracy, and the high-speed microprocessor and electronic switch make the measurement work fast
Efficient and quiet. This instrument uses the international general pulse measurement method, which can provide a test current of more than 300A without causing the tube under test to heat up. The high current test plus withstand voltage test technology is unique, and various protections are used to make the measurement safe.
Just press the test button to get the main parameters of the power Vmos tube. The range of sorting parameters can be set and screened as required, which greatly facilitates industrial mass production.
Performance characteristics:
N-channel general test
Simultaneous testing and display of multiple parameters
Maximum current up to 100A
MOS tube characteristic curve display
One-key quick measurement
U disk to store measurement results
7 inch color touch screen
Simultaneous measurement of withstand voltage and internal resistance
