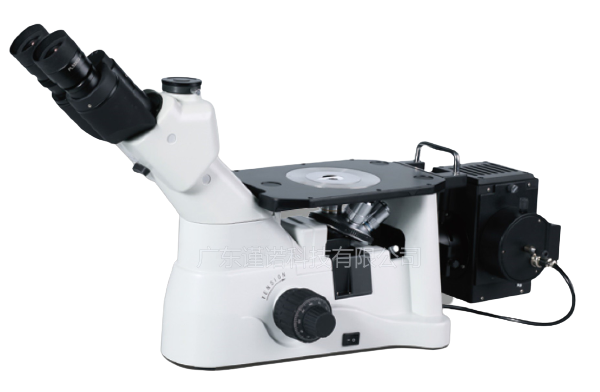

Observation tube: Hinged triocular head, 45° inclined, pupil distance adjustment range: 54-75mm, unilateral visual adjustment ±5 dioptric spectrophotometric ratio: binocular 100%, binocular: triocular =80%:20%
The eyepiece:
High eye-point large field eyepiece PL10X22mm
High eye point large field eyepiece PL15X/16mm
Objective:
Infinite long working distance field Achromatic metallographic objective: LMPL5X /0.15 /WD10.8 LMPL10X/0.3 /WD10 LMPL20X/0.45 /WD4
Infinite long working anomaly field semi-repeater phase objective lens: LMPLFL50X/0.55 /WD7.8 LMPLFL100X/0.80 /WD2.1
Converter: Five-hole converter
Focusing mechanism: Coarse fine-tuning coaxial, coarse tuning per rotation stroke: 38mm, fine tuning per rotation stroke: 0.2mm, focusing accuracy: 0.002mm, with elastic adjustment device
Objective table: Fixed platform: 160X250mm
Work table: Metal slide counter (central hole Φ 12)/metal slide counter (central hole Φ 25)/objective table plate
Moving feet: Low coaxial mechanical moving ruler with a stroke of 120x78mm
Reflective lighting system: Reflective Kola illuminator, with variable aperture light bar and center adjustable field light bar, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, brightness continuously adjustable
Polarization device:
Lift the offset lens insert
The offset mirror insert can rotate 360 degrees
Color filter: Φ 32 mm yellow/green/blue/neutral
Photography device: Photography socket (with PK bayonet), 3.2X photographic eyepiece
Cameras: 0.5X/1.0X/ C camera socket
