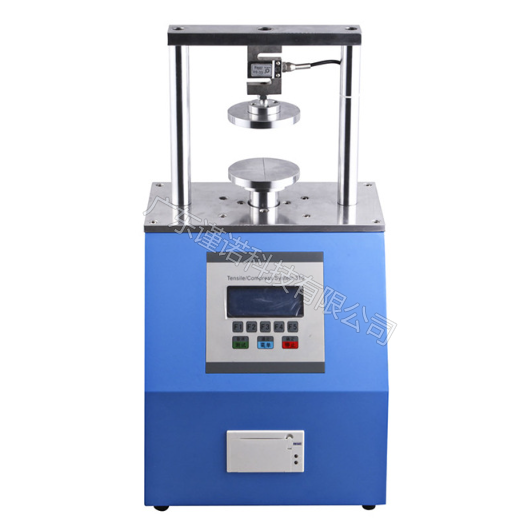

Measuring range: optional within 200kg
Unit switch: N, kN, KGF, GF, LBF
Degree of decomposition: 1/10000
Error code: ±1%
Indication denaturation: ≤1%
Test speed: 12.5±2.5mm/min(or adjustable speed according to customer requirements)
Parallelism of upper and lower pressing plates: <0.05mm
Pressure plate size: 100*100mm(can be customized according to customer requirements)
Spacing of upper and lower pressure plates: 100mm
Volume (approx.) : 350*400*850mm
Power supply: 1∮, 220V 1.5A (according to national standard or specified)
Weight (about) : 45kg
Room temperature: 20℃±10℃;
Power supply: AC220V±22V, 50Hz
Standard configuration: vertical press fixture one pay
Optional: Parallel sampler/ring sampler/ring clamp/flat clamp/adhesive strength clamp
