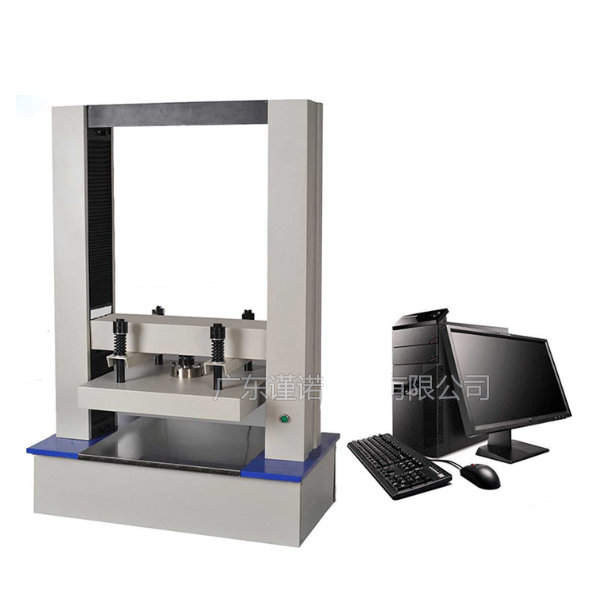

Maximum test load: 5KN /10KN/20kN/50kN Optional;
Size of outer case: 600x600; 800x800; 1000x1000; 1200x1200; 1500x1500mm
Accuracy level: 0.5
Effective force measurement range: according to sensor specifications (plus or minus 10%)
Test force accuracy: ±0.5% of the indicated value;
Range of readings: keep three digits after the decimal point;
The euro. Test speed adjustment range: 0.001-500mm/min (stepless speed regulation);
Speed accuracy: ±0.5%;
Parallelism of upper and lower pressing plate: < 0.5mm;
Displacement measurement accuracy: ±0.5% of the indicated value;
Deformation measurement accuracy: ±0.5% of the indicated value;
Deformation measurement range: 0.2-100FS;
Deformation resolution: 1/500000 of the maximum deformation (full resolution unchanged);
Safety device: electronic limit protection;
Overload protection: automatic protection over 10% of the maximum load;
Data acquisition frequency: 120time/ SEC;
Servo motor: Selection according to the maximum load (400-2000W)
Power supply: AC 220V/5A;
Main engine weight: about 350kg
