Capacity: 1000N (100kgf)
Test speed: 1 ～600 mm/min
Stroke: 250mm ( Exclude jig )
Dimension: W560×D260×H270 ( Include HF Digital Force Gauge)
Weight: Approx .23 kg
Power Supply: Single phase AC100V ～AC240V
CHARACTERISTICS

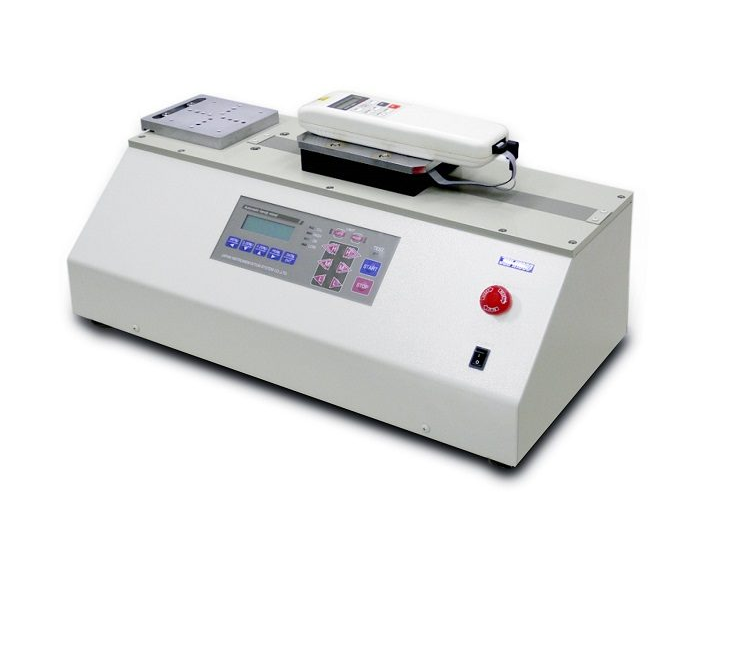

An Automatic Horizontal Servo Control Test Stand which fully utilize the features of Handy Force Gauge
Simple Mode for easy testing and a Detail Mode for setting holding time, interval time, forward & return test
Use digital method, simple and accurate of Test Speed and Test Range setting is available
Tested results can be transfer to computer using Microsoft Excel for data processing
Pre set MAX load function to prevent load cell from overloading
Interchangeable languages of Chinese, English, Japanese and Korean
Low cost, Multi Functions with Simple operations
Power supply within 100 ~ 240V is applicable
