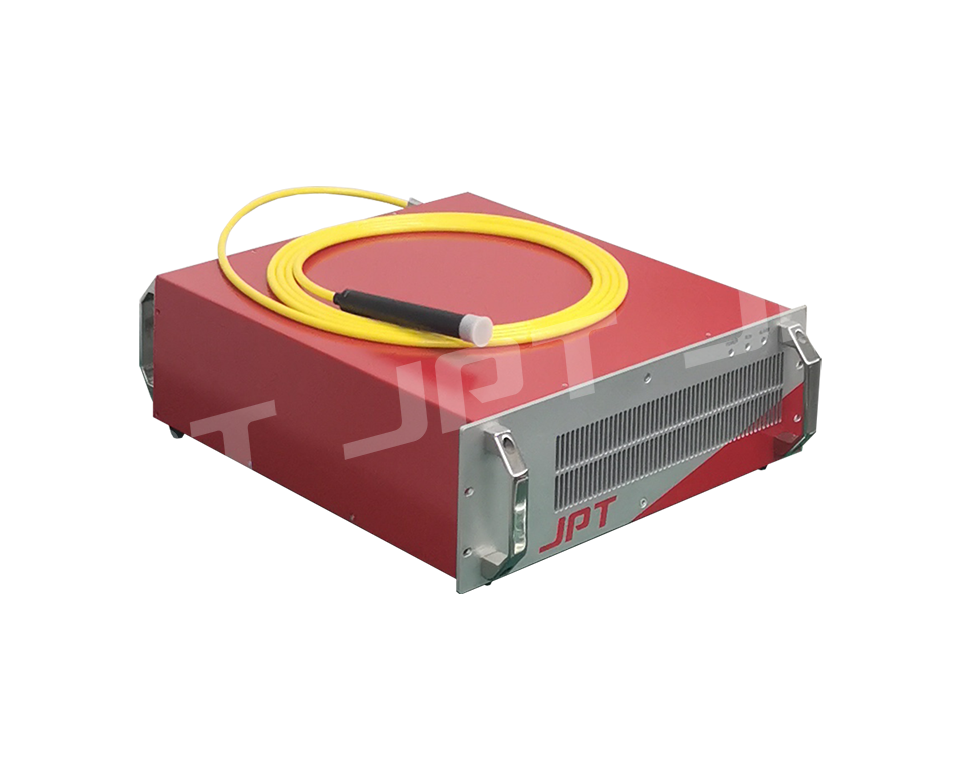

JPT CW 200W CW Fiber Laser (1080nm/ 750W/ 20kHz)
Manufacturer: JPT Model: CW 200W - Contact
Application
Laser cutting
Laser welding
3D printing
Precision drilling
Other applications
Specification
Nominal Average Output Power (W): 200
Beam Parameter Product (mm*mrad): ≤1.5@50μm
Central Emission Wavelength (nm): 1080
Spectral Width @3dB (nm): <6
Armored Cable Length (m): 5
Cooling method: air cooled
Operating voltage (V): Single-phase 220 (AC)±10%
Maximum power consumption (W): 750
Switch on/off time (us): 20
Maximum modulation frequency (kHz): 20
Operation Temperature (℃): 10 ~ 40
Storage temperature (℃): -20 ~ 50
Net weight: 28.5 kg
Size (W x D x H): 483 x 484 x 133 mm
JPT CW laser 200W/300W is diode pumped single mode fiber laser source, Through the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and operation data can be collected. The laser uses air-cooling and compact design, with competitive advantage like high energy conversion (electric to light), maintenance free and fiber delivery, be easily integrated to machine. With the most reasonable design in light path, the laser has very good beam quality (m2 close to 1), users can get higher processing accuracy. JPTCW-SM-K series laser is the best option for high precision industrial laser cutting, welding and other applications
