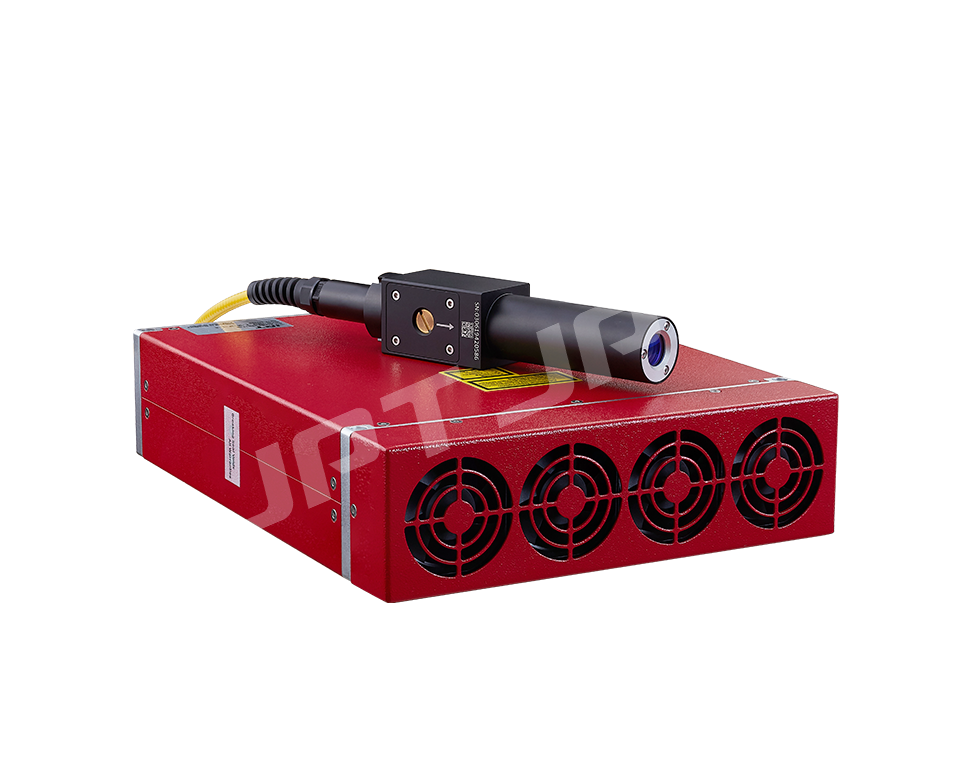

JPT YDFLP-E-20-LP-S Mopa Fiber Laser (>20W/ 0.8mJ/ 1-600kHz)

Application

Scribing, Drilling

Marking on fly

Sheet metal cutting, Welding

Laser derusting

Surface treatment

Metal surface processing, Peeling coating

Specification

M²: <1.5

Armored Cable Length (m): 2

Nominal Average Output Power (W): >20

Maximum Pulse Energy (mJ): 0.8

Pulse Repetition Rate Range (kHz): 1 ~ 600

Pulse Duration (ns): 200

Output Power Stability (%): <5

Cooling Method: Air Cooled

Supply DC Voltage (VDC) (V): 24

Maximum Power Consumption (W): <110

Environmental Supply Current (A): >5

Central Emission Wavelength (nm): 1064

Emission Bandwidth @3dB (nm): <15

Polarization Orientation: Random

Anti-high Reflection: Yes

Output Beam Diameter (mm): 7±0.5

Output Power Tuning Range (%): 0 ~ 100

Operation Temperature (℃): 0 ~  40

Storage Temperature (℃): -10 ~ 60

Net Weight: 3.75 kg

Size(L×W×H): 245 x 200 x 65 mm
