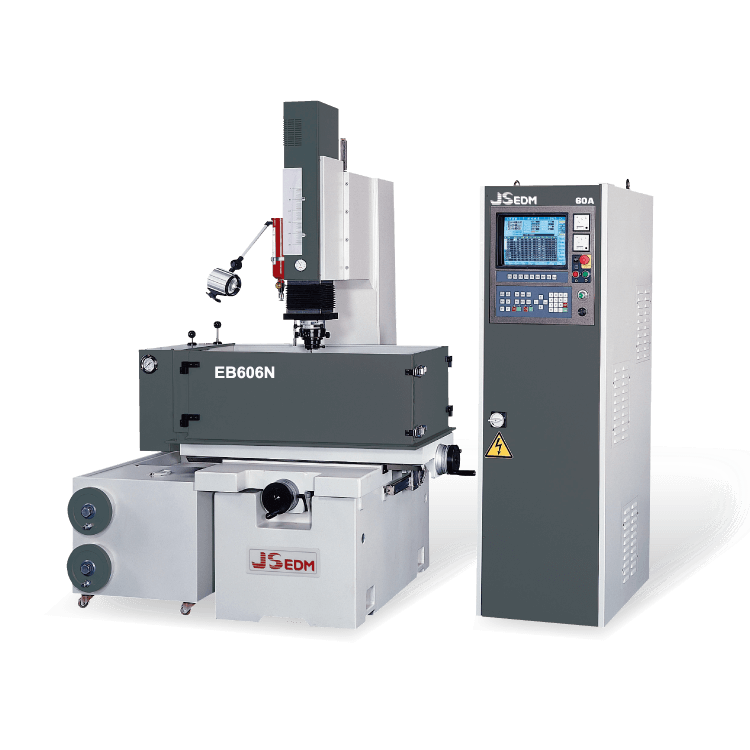

JSEDM EB606N ZNC Electric Discharge Machine (400;600 mm3/min)

Capacity of work tank: 1100x600x400mm

Work table size: 700x400mm

Longitudinal travel(X-axis): 400mm

Cross travel(Y-axis): 300mm

Z axis travel(Z-axis+W-axis): 180+250mm

Distance between platen to table: 210~640mm

Max. Electrode weight: 100kgs

Max. Work piece weight: 1500kgs

Fluid tank capacity: 350L

Machine outside dimensions(WxDxH): 2500x1500x2250mm

Machine weight: 1800kgs

Max. Machining current: 60A; 90A(Optional)

Max. Power input: 7KVA; 10KVA

Max. Machining rate: 400; 600 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
