Jumo 901250 Mineral-insulated thermocouples (-200 ~ +1200 °C, Part No.: 00056813)

Order code:  901250/32-1043-3-100-11-2500/000

Image may be a representation. See datasheet for product details.

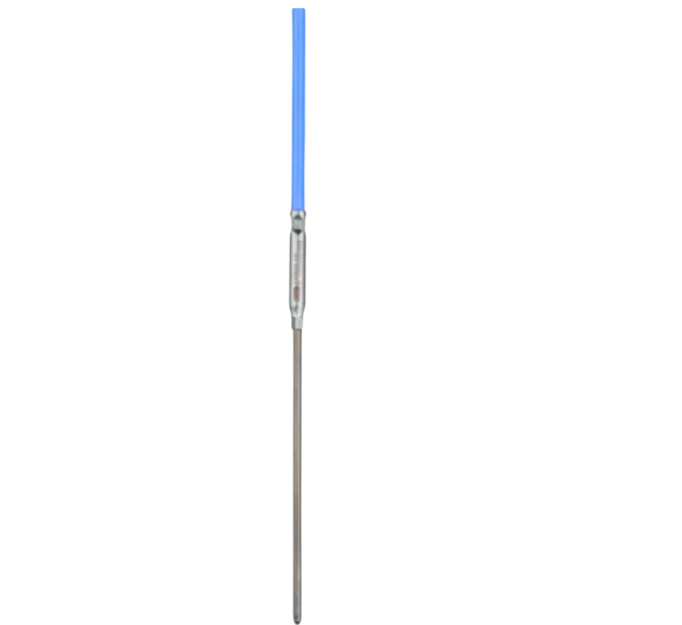

Mineral-insulated thermocouple with silicone-insulated compensating cable

Measuring insert / operating temperature in °C: 1× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816

Protection tube diameter D in mm: Ø 3 mm

Insertion length EL in mm (50 to 50000 mm): 100 mm

Compensating cable end: Ferrules according to DIN 46228 part 4 (standard)

Compensating cable length AL in mm (500 to 500000 mm): 2500 mm (standard)

Extra codes: Without
