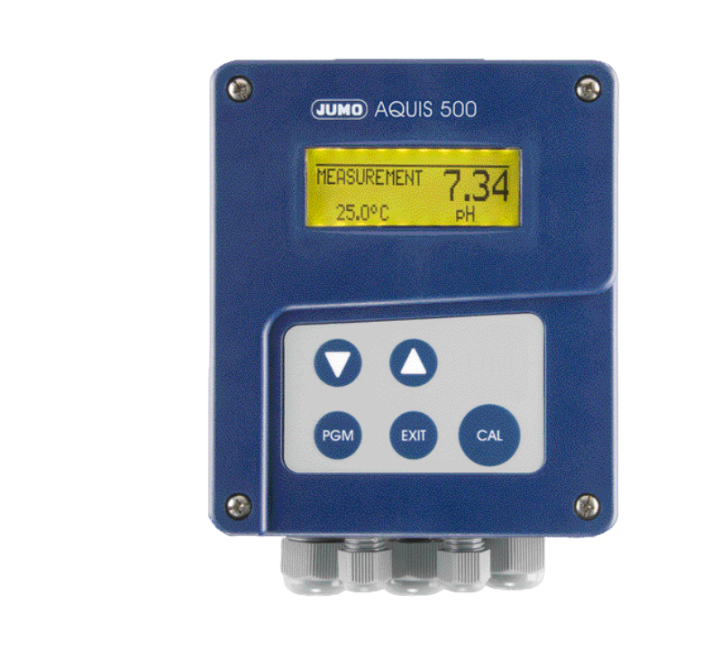

Jumo AQUIS 500 pH Transmitter and controller for pH value (-1 ~ +15 pH, 0 ~ 9999 ppm NH3, Part No.: 00480051)

Order code: 202560/20-888-888-310-310-23/000

Measuring range:

pH: -1 to +15 pH

NH3 (ammonia): 0 to 9999 ppm

ORP: -1500 to + 1500 mV

Basic type extension: in surface mountable housing

Output 1 (for principle measurement variable or continuous controller): analog output 0(4) to 20 mA or 0(2) to 10 V

Output 2 (for principle measurement variable or continuous controller): analog output 0(4) to 20 mA or 0(2) to 10 V

Output 3: relay with changeover (SPDT) contact

Output 4: relay with changeover (SPDT) contact

Power supply: AC 110 to 240 V + 10 %/-15 %, 48 to 63 Hz

Extra codes: none

The product controls and acquires the pH and redox value, the ammonia concentration, and temperatures.
