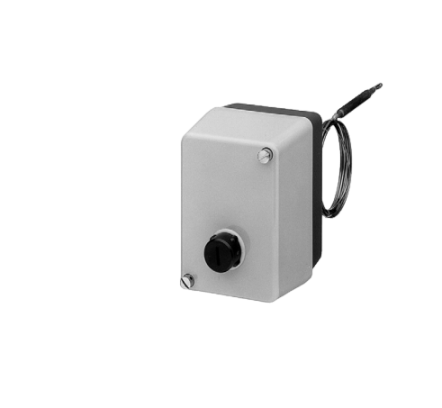

Jumo ATH-70 Surface-mounted single thermostats (20 ~ 150 °C)
Manufacturer: Jumo Model: ATH-70 P/N: 603021/70-1-043-00-0-00-20-13-20-100-8-6/574 - Contact
Order code: 603021/70-1-043-00-0-00-20-13-20-100-8-6/574
Basic type extensions: ATH-70 Safety temperature limiter (STB)
Design: Rigid thermowell
Control range: 20 to 150 °C
Switching differential: None
Capillary length: None
Capillary material: None
Process connection: Screw-in sleeve
Process connection thread: G 1/2"
Process connection material: CrNi
Insertion length: 100 mm
Immersion tube diameter: 8 mm
Probe diameter: 6 mm
Extra code: Microswitch with changeover contact, restart lock (only for STB)
The devices of the ATH series are available as temperature controllers (TR), temperature limiters (TB), temperature monitors (TW), safety temperature monitors (STW), and safety temperature limiters (STB). In the event of a malfunction the STB sets the system being monitored to a safe operating status.
