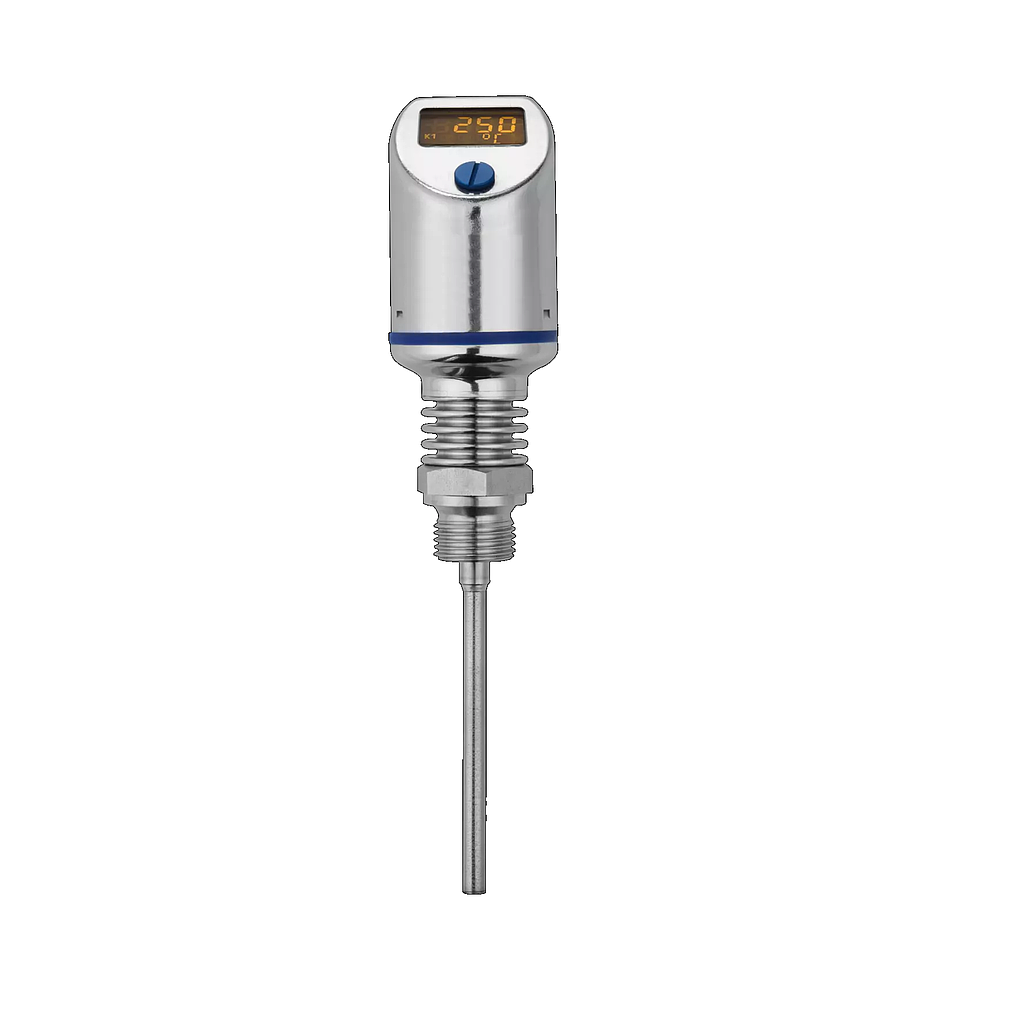

Jumo DELOS T Electronic temperature switch (-50~+500°C; Part no: 00551004)

Order code:  902940/50-8-408-1013-0-475-0-000-000/000

Electronic temperature switch with display and analog output and M12 × 1 plug connection for RTD temperature probes

Version: Standard with default settings

Operating temperature in °C: -50 to +500 °C

Measuring insert:  1 × Pt1000 in four-wire circuit

Tolerance class according to DIN EN 60751:  Without (not relevant)

Output:  1× PNP switching output and 1× analog output, 4 to 20 mA, user configurable

Protection tube diameter D in mm:  Without (not relevant)

Insertion length EL in mm (50 to 1000 mm): Without (not relevant)

Process connection PA: Without (smooth protection tube made out of stainless steel 316 L)

Extra codes: None
