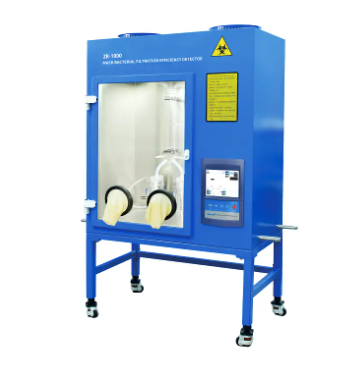

Junray ZR-1000 Mask Bacterial Filtration Efficiency (BFE) Tester (28.3L/min, 0～300kP, ASTMF2100/ ASTMF2101/ EN14683 Standard)

Name: Junray ZR-1000 Mask Bacterial Filtration Efficiency (BFE) Tester (28.3L/min, 0～300kP, ASTMF2100/ ASTMF2101/ EN14683 Standard)
Brand: Junray

ManufacturerJunray(View more products from this manufacturer)

ModelZR-1000

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Short Description

Specifications

Sampling Flow Rate of A: Parameter range: 28.3L/min, Resolution: 0.1L/min, MPE (Maximum Permissible Error): ±2.5%

Sampling Flow Rate of B: Parameter range: 28.3L/min, Resolution: 0.1L/min, MPE (Maximum Permissible Error): ±2.5%

Nebulization flow rate: Parameter range: (8～10)L/min, Resolution: 0.1L/min, MPE (Maximum Permissible Error): ±5.0%

Peristaltic pump flow: Parameter range: (0.006～3.0) mL/min, Resolution: 0.001mL/min, MPE (Maximum Permissible Error): ±2.5%

Front pressure of A-path flowmeter: Parameter range: (-20～0)kPa, Resolution: 0.1kPa, MPE (Maximum Permissible Error): ±2.5%

Front pressure of B-path flowmeter: Parameter range: (-20～0)kPa, Resolution: 0.1kPa, MPE (Maximum Permissible Error): ±2.5%

Front pressure of nebulizer: Parameter range: (0～300)kPa, Resolution: 0.1kPa, MPE (Maximum Permissible Error): ±2.5%

Negative pressure in aerosol chamber: Parameter range: (-90～-120)Pa, Resolution: 1Pa, MPE (Maximum Permissible Error): ±2.0%

Operation temperature: (0～50)℃

Cabinet negative pressure: (-50～-200)Pa

Data storage capability: ＞100000 groups

Characteristics of HEPS filter: Filtration efficiency for particles is above 0.3μm ≥ 99.99%

Mean mass diameter of aerosols: Average particle diameter is (3.0 ± 0.3) μm, geometric standard deviation ≤ 1.5

Captured particle size of Two-path 6-stage Anderson sampler: 1st stage > 7 μm, 2nd stage (4.7-7) μm,3rd stage (3.3-4.7) μm, 4th stage(2.1-3.3) μm, 5th stage (1.1-2.1) μm, 6th stage (0.6-1.1) μm

Size of aerosol chamber: (length 600× diameter 85× thickness 3) mm

Total number of positive quality control sampler: (2200±500) CFU

Ventilation flow rate of negative pressure cabinet: ≥5m3/min

Dimensions of negative pressure cabinet door: (length 1000× width 730) mm

Host size: (length 1180× width 650× height 1300) mm

Bracket size: (length 1180× width 650× height 600) mm, height adjustable within 100mm

Power supply: AC220V±10%，50Hz

Instrument noise: ＜65dB(A)

Weight of whole machine: About 250 kg

Overall power consumption: ＜1500W

Product Detail

Key specifications of Model ZR-1000 mask bacteria filtration efficiency tester (BFE) not only meet the requirements of B.1.1 in YY0469-2011 <technical requirements for medical surgical masks>, but also meet the requirements of ASTMF2100, ASTMF2101 and European EN14683 standards. What’s more, we made innovative improvements based on this, with double gas contrast sampling method at the same time, improve the precision of sampling. It is applicable to the performance test of the mask bacterial filtration efficiency by the metrological verification department, scientific research institutes, mask manufacturers and other relevant departments.

Features

> The negative pressure test system ensures the safety of operators;

> The negative pressure cabinet is equipped with peristaltic pump, A and B two-path six stage Anderson sampler;

> The flow of peristaltic pump can be set;

> The flow rate of special microbial aerosol generator can be set.

> Good nebulization performance, aerosol size conforms to global standards;

> Controlled by embedded high-speed industrial microcomputer;

> 10.4-inch industrial high brightness colored touch screen;

> USB port, supporting data transfer to USB flash disk;

> Support Bluetooth printing;

> Built-in high brightness lights;

> Built in leakage protection switch to protect the safety of operators;
