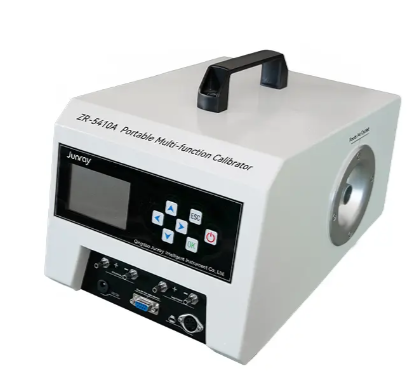

Junray ZR-5410A Portable Multi-function Calibrator (50～6000 mL/min, 60～130 kPa)

Short Description

ZR-5410A is a Portable Comprehensive Calibrator for Gas, dust, smoke dust Sampler.

Specification

Soap film flowmeter: Range: (50～6000)mL/min, Resolution: 0.1mL/min, Accuracy: ±1.0%

Roots flowmeter: Range: (6～260)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%

Medium flow orifice flowmeter: Range: (40～160)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%

High flow orifice flowmeter: Range: (700～1400)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%

Atmospheric temperature: Range: (-20～50)℃, Resolution: 0.1℃, Accuracy: ±1.0℃

Micro-pressure: Range: (0～3000)Pa, Resolution: 1Pa, Accuracy: ±1%

Gauge pressure: Range: (-50～50)kPa, Resolution: 0.01kPa, Accuracy: ±2%

Atmospheric pressure: Range: (60～130)kPa, Resolution: 0.01kPa, Accuracy: ±0.5kPa

Repeatability of flowrate test: ±0.5%

Battery: ＞8h

Power supply: AC(100～240)V, 50/60Hz, DC12V 2A

Size: (L232×W334×H215)mm

Host Weight: About 9kg

Consumption: ≤10W

Introduction

ZR-5410A is a Portable Comprehensive Calibrator for Gas, dust, smoke dust Sampler. Especially for calibrating the flow rate and pressure of air sampler, particulate matter sampler and flue gas analyzer.

Applications

Calibration service companies and service industry

Measurement and control laboratories

Quality assurance

Fearture

1）High measurement accuracy

The maximum error of flowrate is ±1% (First-Glass Standard)

2）Meet the multi-type flow calibrator

Built-in roots flowmeter to calibrate flue gas analyzer, can read flow directly.

Built-in soap film flowmeter to calibrate air sampler and flue gas sampler.

Built-in orifice flowmeter was used to calibrate the particulate sampler.

3）Excellent human interaction experience

Built-in high-performance lithium battery, power supply time > 8h.

Ambient atmospheric pressure, temperature, can be measured and input.

Automatic conversion of standard flow.

LCD screen, easy to operate.
