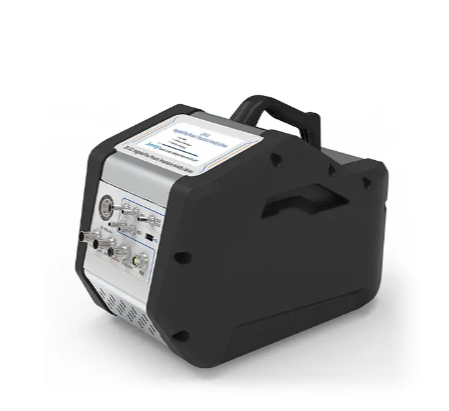

Junray ZR-5411 Integrated Flow, Pressure, Temperature, Humidity Calibrator (200～1400 L/min, 0～5000 kPa)

Short description

This calibrator is a Portable Comprehensive Calibrator for Gas/ Dust/ VOCs/ Air/ particulate matter Sampler.

Specification

Flowrate:

Range: (10～200)mL/min, Resolution: 0.01mL/min, Accuracy: ±1.0%

Range: (200～2000)mL/min, Resolution: 1mL/min, Accuracy: ±1.0%

Range: (2～20)L/min, Resolution: 0.01L/min, Accuracy: ±1.0%

Range: (20～200)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%

Range: (200～1400)L/min, Resolution: 0.1L/min, Accuracy: ±1.0%

Pressure Calibration Range:

Micro-pressure: Range: (0～5000)kPa, Resolution: 0.1kPa, Accuracy: ≤0.5%F.S.

Gauge pressure: Range: (-60～60)kPa, Resolution: 0.01kPa, Accuracy: ≤0.5%F.S.

Temperature Calibration Range: (0-500)℃

Battery: ＞8h

Data Storage: ＞100000 groups

Power supply: AC(100～240)V, 50/60Hz, DC12V 2A

Size: (L350×W220×H250)mm

Host Weight: About 4kg

Consumption: ≤60W

Introduction

This calibrator is a Portable Comprehensive Calibrator for Gas/ Dust/ VOCs/ Air/ particulate matter Sampler.

Especially for calibrating flowrate, pressure, temperature, humidity of samplers.

Applications

Calibration service companies and service industry

Measurement and control laboratories

Quality assurance

Feature

Built-in orifice flowmeter to calibrate the flowrate of sampler.

Built-in high-precision pressure sensor to calibrate the pressure of sampler.

Built-in high-precision resistance to calibrate the temperature & humidity (wet/dry ball) of sampler.

Meet multi-type flow calibrator.

A:(20~200)L/min

B:(2~20)L/min

C:(200~2000)mL/min

D:(10~200)mL/min

Built-in high-performance lithium battery, power supply time > 8h.

Large data capacity, data can be printed by Bluetooth printer.

Excellent human interaction experience

Automatic conversion of standard flow.

5 inch LCD screen, easy to operate.
