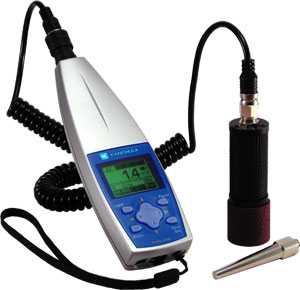

Manufacturer: Kanomax
Model: 4200
Origin: Japan
Warranty: 12 months
- Measurement Range:
Acceleration: 0.02 to 200 m/s2 RMS
Velocity: 0.02 to 200mm/s RMS
Displacement: 2 to 2000 m EQp-p
- Frequency Range:
Acceleration: 3Hz to 10kHz
Velocity: 10Hz to 1kHz (Compliant with JIS B0907-1989)
Displacement: 10 to 400Hz
- Parameters: RMS, Peak, EQ Peak, EQ Peak-to-Peak
- Interface: RS232C
- Output:
AC Output: 1Vrms (Full Scale)
Headphone Output: Portable Headphones w/Volume function
- Operating Environment: -10 to 50°C, 30 to 90%RH with no condensation
- Power Supply: 2 x AAA batteries or AC adapter
- Dimensions: 5.7″(H)x1.9″(W)x0.9″(D) Case is 12″x18″x3″ (8lbs)
- Weight: 3.0lbs (136 g)
- What’s Included: Meter, Operation manual, Accelerometer with cable and magnet, Contact pin, 2 x AAA batteries,
Carrying case, Calibration certificate
- Features:
Compact size maximizes technician mobility
Magnetic accelerometer increases measuring accuracy and ease-of-use
Built-in RS232 interface allows data output to a PC or direct output to a printer
Includes meter, accelerometer with cable and magnet, contact pin, 2 x AAA batteries, carrying case, and NIST TRACEABLE Calibration Certificate
- Applications:
Industrial Machinery Check-ups
Manufacturing QA
Datasheet
Manual
