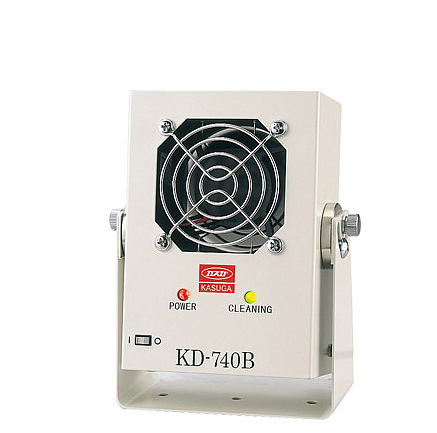

Kasuga KD-740B Fan type ionizer

Name: Kasuga KD-740B Fan type ionizer
Brand: KASUGA

ManufacturerKASUGA(View more products from this manufacturer)

ModelKD-740B

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Ion generation method: DC corona discharge
Discharging electrode needle: Tungsten
Air volume: 0.65m3/min
Airflow speed*: 1.31m/sec
Alarm output: The LED lamp on the front panel flashes red to indicate cleaning alarm or high-voltage stop
Terminal block: DC24V input, DC24V output, alarm output, ground
Amount of ozone production*: 0.02 ppm or less
Operating environment: Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition: DC24V (dedicated AC adapter or the terminal block)
Consumption current: 220mA
Mass: Approx. 510g

Features

The ultra-small dimensions of the unit permit easy installation on a bench or in a manufacturing device.
The lamp signals when the unit needs cleaning, ensuring that you never miss the appropriate time for maintenance.
Power input and output can be made via the terminal block on the rear. This allows easy series connection of multiple units without an AC adapter for each, which is convenient when installing several units in a manufacturing device. The alarm output also makes it easy to interlock the unit with a manufacturing device so that signals indicating the need for maintenance or occurrence of abnormality are transmitted to the device.
The locking screw used for the angle adjustment mechanism prevents change of angle due to vibration or other such factors.
Our proprietary technologies permit use of a single high-voltage transformer for generating high-voltage power, both positive and negative. This eliminates the need for concern about opposite charge, a problem faced by conventional DC-type units that would be caused by failure of one of two transformers. (Patented)
This ionizer can be used safely for ionization from electronic devices because its stainless steel fan guard is grounded and therefore stabilizes the ion balance and shields the electric field. (Patented)

Specifications

Main unit of the ionizer

Model	KD-740B
Ion generation method	DC corona discharge
Discharging electrode needle	Tungsten
Air volume	0.65m³/min
Airflow speed^*	1.31m/sec
Alarm output	The LED lamp on the front panel flashes red to indicate cleaning alarm or high-voltage stop
Terminal block	DC24V input, DC24V output, alarm output, ground
Amount of ozone production^*	0.02 ppm or less
Operating environment	Temperature: 0°C-40°C, Humidity: 80% RH or below (no condensation)
Input condition	DC24V (dedicated AC adapter or the terminal block)
Consumption current	220mA
Mass	Approx. 510g

*Measurement distance: 300mm

Dedicated AC adapter(Options)

Model	KN-AC1
Input conditions	AC100 - 240V　50/60Hz
Output voltage	DC24V
Capacity	Capable of driving up to two units of KD-740B
Mass	Approx. 270g

Ion balance and ionization performance

Dimensions [mm] and names of parts

Main unit of the ionizer

Dedicated AC adapter : KN-AC1(Options)

Note: The AC adapter is not included in the KD-740B accessories. Please use either of the following symbols when placing an order.

Model	Specifications
KD-740B-1	With AC adapter
KD-740B-2	Without AC adapter

Intended use

Manufacturing and assembly processes of various electronic devices
Use in devices such as handler, appearance tester, lead forming device, and mounter
Prevention of dust adhesion to optical components and LCD
Ionization in other small spaces
