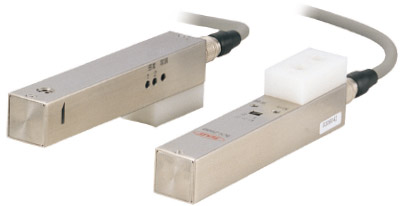

Product image

Kasuga KS-2100 Sensors

ManufacturerKASUGA

ModelKS-2100

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Detection method: Vibration-type static sensor

Measuring ranges

Range 1: ±1 - ±2000V

Range 2: ±0.01 - ±20.00kV

Analog output: 0 - ±5V

Measurement precision: Within ±10%

Standard measurement distance

Range 1: 10 mm

Range 2: 50 mm

Alarm: LED lamp indication and external output of sensor failure

Power supply: DC12 - 24V±5％

Operating environment Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation)

Mass: Approx. 100 g (not including cable)

Accessories: Dedicated 5 m cable (can be extended to 100 m)

Features

The amplifier section (driver circuit) is incorporated into the detector section, resulting in a low price and compact dimensions.
Allows low-cost building of typically expensive static monitoring systems.
Permits switching between measuring ranges, allowing measurement over a wide range from low potential to high potential.
The LED lamp informs of sensor failure and signals indicating the failure can be output externally.

Intended use

Monitoring of charge quantity in the production process of flat-panel displays
Monitoring of charge quantity of semiconductor wafers
Monitoring of charge quantity during a process of handling LSIs or conveyance of printed wiring boards

Specifications

Model	KS-2100
Detection method	Vibration-type static sensor
Measuring ranges	Range 1: ±1 - ±2000V
	Range 2: ±0.01 - ±20.00kV
Analog output	0 - ±5V
Measurement precision	Within ±10%
Standard measurement distance	Range 1: 10 mm
	Range 2: 50 mm
Alarm	LED lamp indication and external output of sensor failure
Power supply	DC12 - 24V±5％
Operating environment	Temperature: 0°C-40°C,Humidity: 65% RH or below (no condensation)
Mass	Approx. 100 g (not including cable)
Accessories	Dedicated 5 m cable (can be extended to 100 m)

Dimensions [mm] and names of parts
