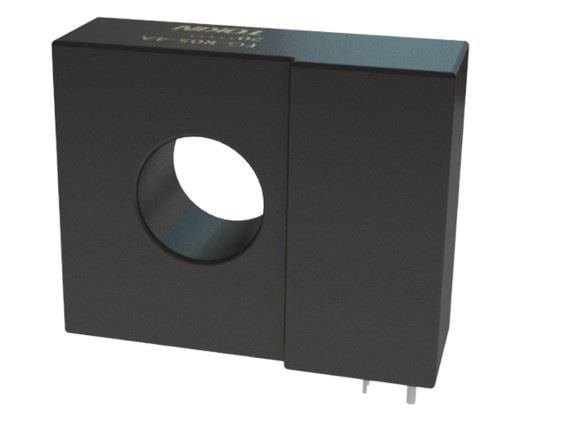

KEMET FG-R05-4BA Residual Current Sensor 250mV Max 4.5mA to 50mA 12 +/- 0.25V 13mA IMD -40 to +85C AEC-Q200
Manufacturer: KEMET Model: FG-R05-4BA - Contact
Width: 13.5 mm
Height: 31.5 mm
Length: 38.5 mm
Output Type: Digital, Analog
Sensor Type: Open Loop
Unit Weight: 20 g
Qualification: AEC-Q200
Response Time: 280 ms
Current Rating: 13 mA
Frequency Range: 55 Hz
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Operating Supply Voltage: 5 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
