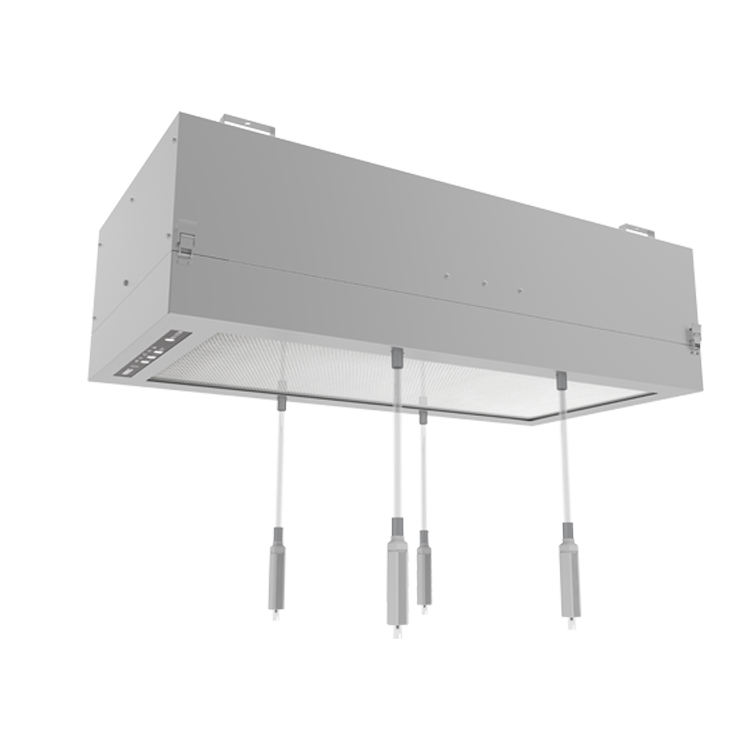

KESD KU-1175N Static Eliminator Particle Control Fan Filter Unit (≤±100V; ≤260W, 99.995% H14)

Input Voltage: 220 VAC, 50/60 Hz

Output Voltage: 0~20 KVDC/Negative & positive adjustable

Control: Parameters adjustable by remote control

Portal: 220V Plug

Output adjust: Ions output and ion balance can be adjusted by each emitter

Emitter material: Silicon, Titanium( Optional)

Ion Generator: Decay time＜60S,ion balance≤±100V

Eliminate Area: Cover 1.6m2 based on install height 0.5~2.5m

Wireless monitor: LoRa

Temp & humidity sensor:

Temperature: -40~125℃±0.3℃

Humidity: 0%~100%RH±1.5%RH

Purification ISO 14644-1:2015

Alarm: HV abnormal alarm;motor abnormal alarm

Ozone: ≤0.1ppm(distance 50mm)

Control environment: Humidity tange 15%~75%；Temperature 0~40℃

Noise: ≤65dB

Typical Watt: ≤260W

Filter Efficency: 99.995% H14 (filter element can be customized)

Fan Speed: 0.4~0.9±20%

Weight: 40kg
