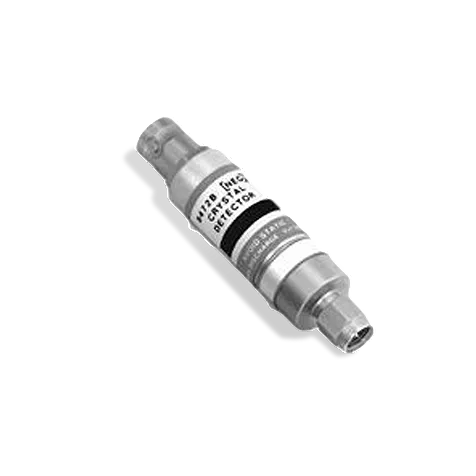

KEYSIGHT 8472B Low-Barrier Schottky Diode Detector (10MHz - 18GHz)
Manufacturer: KEYSIGHT Model: 8472B - Contact
Frequency response: ±0.3 dB to 12.4 GHz, ±0.5 dB to 15 GHz, ±0.6 dB to .18 GHz
Maximum SWR: 1.15 to 4 GHz, 1.35 to 7 GHz, 1.5 to 12.4 GHz, 1.7 to .18 GHz
Low-level sensitivity: > 0.5 mV/uW
Maximum operating input power: 200 mW
Typical short-term maximum input power (< 1 minute): 1 W
Noise: < 50 uV
Output polarity: negative
Input connector: SMA male
Output connector: BNC female
