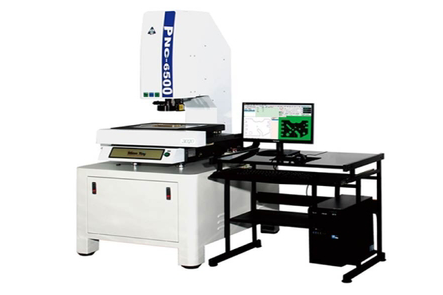

(X,Y,Z)Measuring travel (mm): 400*300*200
Demo-parts weight: 30kgs
Z axis trip: 200mm
Operation: Program control CNC
Base material: Precision Granite
Body material: X,Y Precision Granite
Kind of drive: Ball screw&linear rail
Linear accuracy: 3+L/200μm(temperature 20℃±1) relative humidity:55-65%
Repeat accuracy: <3μm
Linear scales: Europe and United imported linear scales1μm(optionally equipped with: 0.5μm/ 0.1μm)
Imaging system: Europe and United high resolution color system
Light source: High brightness
Light source system: Automatic control (16 area table light/contour/coaxial light)
Optical lens: Automatic change lens
Optical power: 30X~180X
Software: AQ-6500 auto measurement software
Hardware: PC+LCD color monitor
Appearance(W*D*H): 800*900*1000
Machine weight(kgs): 250
Power: AC110V~AC220V single phase 50/60Hz
