Steel pin:ф2mm—ф8mm and high temperature resistant Tungstem,100mm in length,each 2 pieces.
Distance between needle to bottom:panel for placing a battery:200mm
Clamped distance:200mm
Penetrating speed:penetrate into it perpendicular to the accumulator plate in 10—40mm/s(Pin stops in the accumulator plate).
Penetrability:150~200kg(maximum 200kg);
Power display:Pressure sensor and high precison pressure sensor
Stroke:200mm
Driving mode:Hydraulic
Clamping mode:Manual

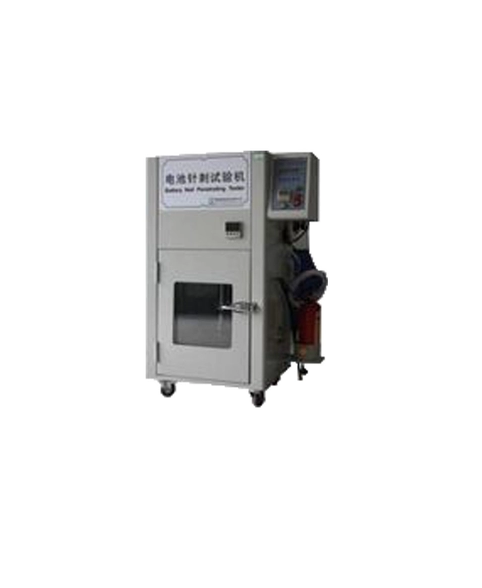

Cabinet Type:box-type,explosion-proof,fireproof,corrosion resistant and easy cleaning.
Explosion-proof cabinet:Internal Material:SUS304#stainless steel
External Material:Cold-rolled steel sheet with baking varnish.4 freely moved universal pulleys
Viewing window:toughened glass,size:250*250mm;
Exhaust fan:¢120mm, 30W ,on the back side.A reserved outlet for connecting exhaust fan pipe
Delay function: 0~ 99H 99S (set freely)
Power:220V , 50~60HZ,3A,1100W
Dimension: 70×55×112cm(L×W×H)
