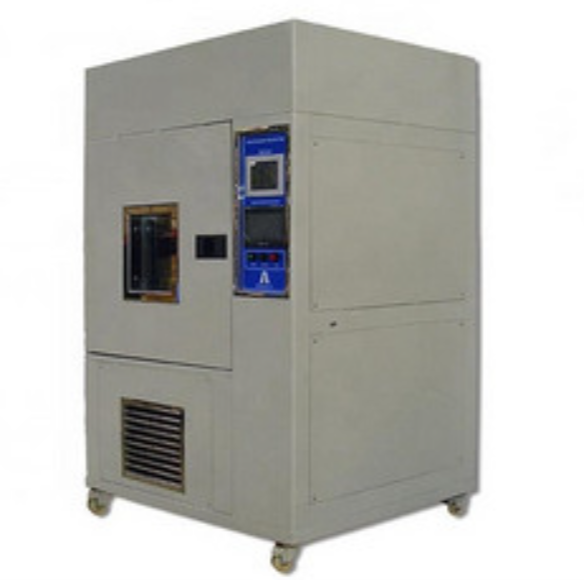

Temperature Chamber Parameter
Temp. Range: 0℃~ +100℃(controllable)
Heating Rate: Average 3℃/min(from 0℃ to 100℃. Non liner, no load)
Cooling Rate: Average 1℃/min(from 100℃ to 0℃, Non liner, no load)
Inner Chamber Dimension: W600 X H750 X D500 MM
External Chamber Dimension: W1500 X H1750 X D1000MM
Inner Short Circuit Main Technical Parameters
Max. Loading: 200KG
Resolution: 1/10000
Force Accuracy: ≤0.5%
Force magnification: 7 Segment auto change
Displacement Resolution: 1/1000
Displacement Accuracy: ≤0.5%
Speed Range: 0.01-20MM/S
Effective Range: 0 ~ 150mm
Max. Testing Space: 300X300MM (Able for special customize according customer requirement)
Voltage Sampling Range: 0—20V
Voltage Resolution: 1MV
Voltage Sampling Frequency: 100HZ
Control System: Servo Control System
