Temperature range: -50°C to +100°C
Humidity range: 40% to 98% RH
Dimension (internal) (W x D x H): 1500 x 1500 x 3000 mm
Dimension (external) (W x D x H): 2850 x 1700 x 3200 mm
Ramp:
Variable, temperature 0~5°C/min & humidity 0~5%/min
(In average, no load)
Accuracy: Temperature ±1°C, Humidity ±2.5%RH
Interior walls: Stainless steel 304
Exterior walls: Cold rolled steel plate with baking finish
Temperature & humidity measurement and controller:
32-bit control and monitoring system
Interface facility with RS232
Programmable temperature and humidity controller
Viewing window: Multi pane glass window size
Port holes: 50 mm diameter for wire routing
Power supply requirement: Three phase, AC380 V ±10%, 50 Hz
Sound pressure level: <72 dB(A)
Condenser cooling: Water cooled
General technical specification

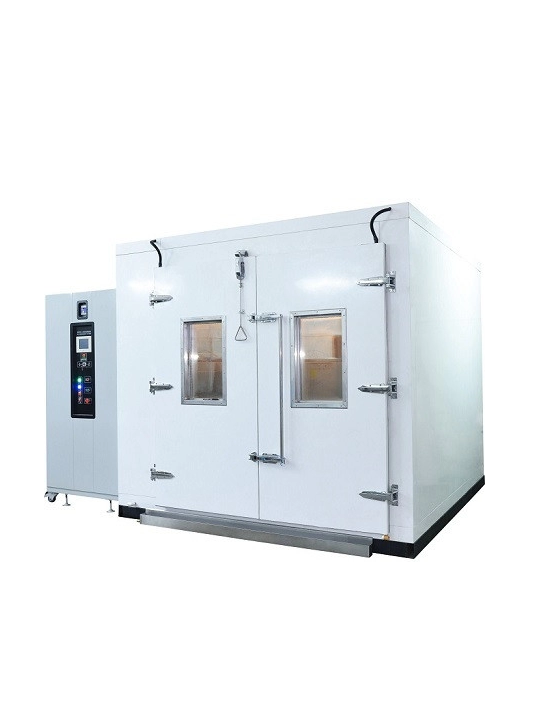

Thermal cyclic chamber:
Chamber with internal air circulation, and all heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
Interior:
Conditioning with air circulation to maintain uniform temperature
Interior has provision for arranging stainless steel shelves
Insulation:
Insulation is asbestos-free, CFC-free, with low thermal conductivity polyurethane (PU) foam
Cooling system:
Cascade type refrigeration system with hermetically sealed refrigeration cycles
Environmentally friendly and chloride-free refrigerant
Door:
Lockable front opening with double door latch, easy to open
Silicon gasket for perfect sealing
Viewing window:
Viewing interlock is sealed to avoid leakage and provided with heating to prevent condensation
Illumination:
Internal light on viewing window with external control
Temperature measuring and control system:
The temperature measuring and control system adopts a microprocessor system and is provided with a touch panel for monitoring and digital display
Supplied with support software capable of visualizing and graphically analyzing measured and recorded values
A. Graphical representation and digital display and control of set and actual values
B. Digital input and display of temperature in °C
C. Fault diagnosis system
D. Storage for 120 programs
Adjustable safety cut-out against high and low temperature
Facility to program temperature measurement using sensor PT100
