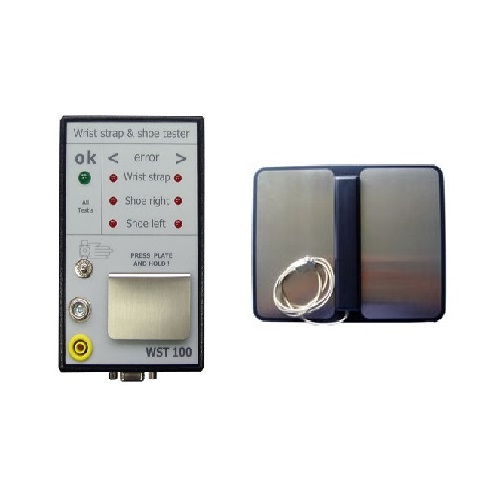

>> WST 100
Dimensions:
Hand-held unit: approx. 150mm x 88mm x 35mm
Shoe electrode: approx. 430mm x 500mm x 10mm
Weight:
Hand-held unit: approx. 250g
Shoe electrode: approx. 2kg
Power supply:
4 x Mignon (AA) in the hand-held unit
optional: Wall wart WST 100 NT
Display: 1 LED 8mm green, 6 LED 5mm red, 1 buzzer
Relay contact: potential-free shutter 60V 2A
Measuring principle: Voltage current measuring principle, therefor constant measuring voltage
Measuring voltage: 20V±5%
Connection: All connections over 9-pin Sub-D plug
Tresholds:
The tresholds are seperately adjustable for the wrist strap- and the shoe test.
Lower treshold from 0 to 2MΩ
upper treshold from 0 to 200MΩ
>> WST 100 SE
Dimensions: 430mm x 500mm x 35mm (L x W x H)
Cable length: 150cm
Relay contact: 60V/1A
