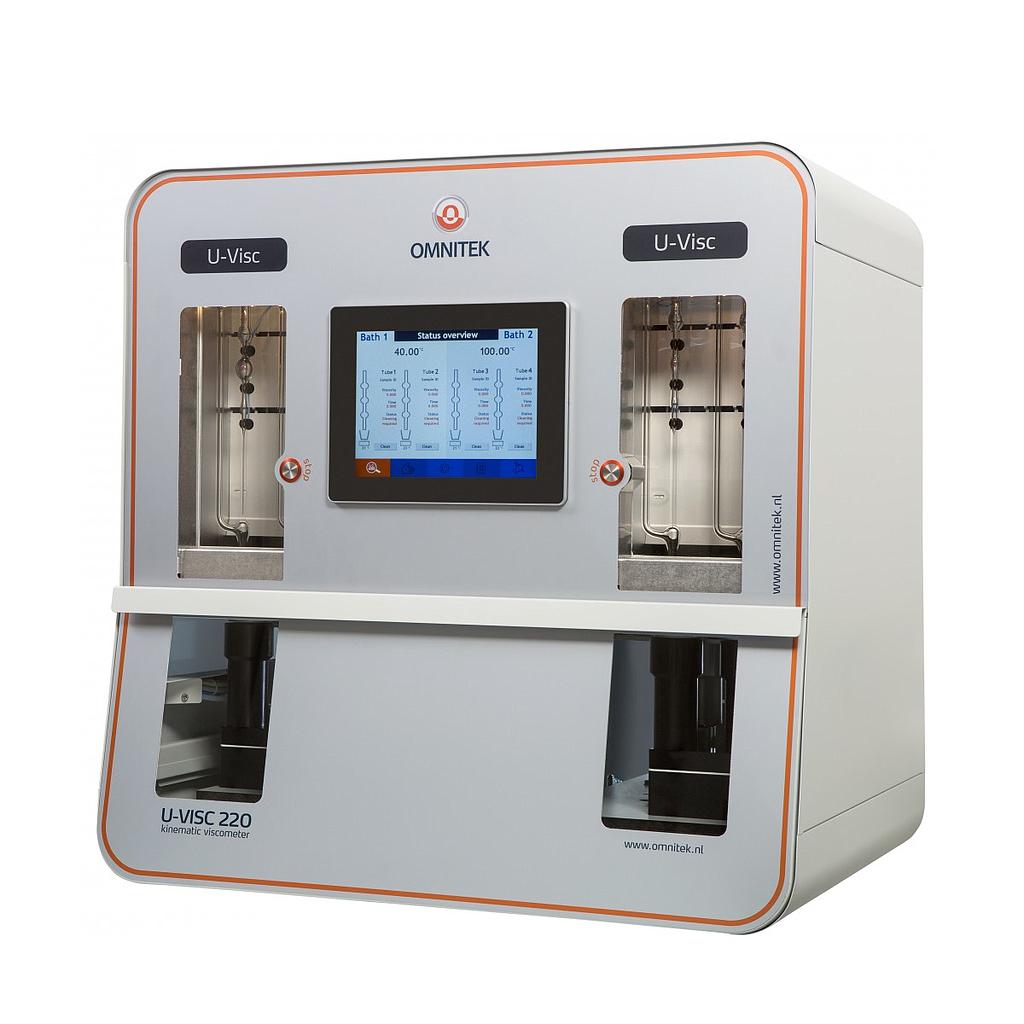

Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
Specifications
Conforms to the specifications of: ASTM D445, D446, D2270; IP 71; ISO 3104, ISO 3105, ISO 2909; DIN 51562; FTM 791-305; NF T 60-100
Measuring range: 0.15-25.000mm2/s @ 40°C
Temperature range: 15-150°C (59-302°F)
Temperature stability: 15-100°C ±0.01°C; Up to 150°C ±0.03°C (*For temperatures around ambient, and external chiller is required)
Timer accuracy: 0.001s
Sample Volume: 8-16mL
Sample Introduction: Vacuum/Pressure
Solvent consumption: 10-12mL per cycle (single), 12-15mL per cycle (double)
Sample throughput: Up to 40 measurements per hour
Viscometer type: Ubbelohde based
Sensor type: Thermal/Optical
Communication: RS232
PC Control: Multiple instruments can be controlled with one PC
Data Export: USB
Electrical requirements: 115V 60Hz; 230V 50Hz
Dimensions: WxDxH,in.(cm): 29.5x24.4x30.7 (75x62x78)
Net weight: 92 lbs (202.8kg)
Included accessories
16 Position Autosampler per Tube
100-fold Viscometer Tube(s)
Bath Oil
Cooling Coil
Reference Standards
Dual Solvent Injection
Advanced PC Software
Additional accessories
Sample Preheating
Pedestal Base
Cooling Circulator (for measurement around room temperature)
Compressor
PC for Instrument Control
Polyethylene Sample Cups (750/pack)
Glass Sample Cups (50/pack)
Viscometer Tubes
Spare Parts Kit
