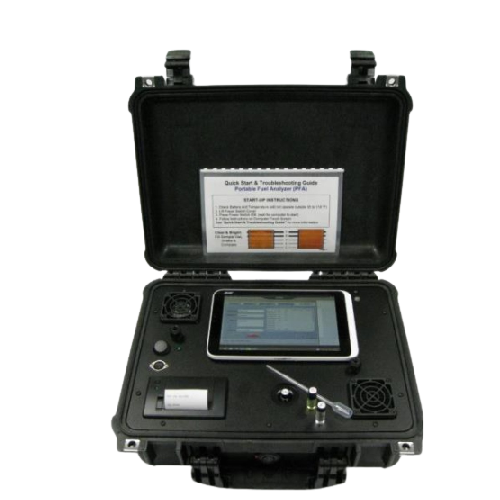

The Portable Fuel Property Analyzer (PFPA) provides rapid fuel analysis anywhere it’s needed: the plant, port, or field. Analysis is obtained in seconds using only a 2 mL fuel sample.
Specifications
Fuel properties: Developed and validated according to ASTM E1655
Operation: Warm-up Time: 1 minute; Measurement Time: 10 seconds
Sampling: 2 mL glass vials (disposable)
Analyzer:
- Measurement type: Near Infrared Spectroscopy
- Optical design: Dispersive (no moving parts)
- Light source: Incandescent Lamp
Detector: 256 pixel InHaAs
Spectral resolution: 3 – 6 nm (20 – 30 cm-1)
Spectral range: 1000 to 1600 nm
Calibration: Factory set using NIST standard lamp
Analysis calibration: Each unit is calibrated with a diverse matrix of over 800 fuels
System check: Methylene Chloride Matrix
Outlier detection: Non fuel or contaminated fuel rejected
Data system computer: Tablet with Windows 8.1
Sample storage: Over 1000 measurements
Data export: USB Port, Ethernet, WiFi
Data printout: Thermal Printer
Environment
- Dimensions: 7x13x16 in. (17.4x33x40.6cm)
- Weight: 14 lbs (6.24kg)
Power: 120/240 VAC 50/60 Hz or 12 VDC with automotive lighter adapter. (Optional rechargeable battery pack)
Operating temperature: -13 to +122°F (-25 to +50°C)
