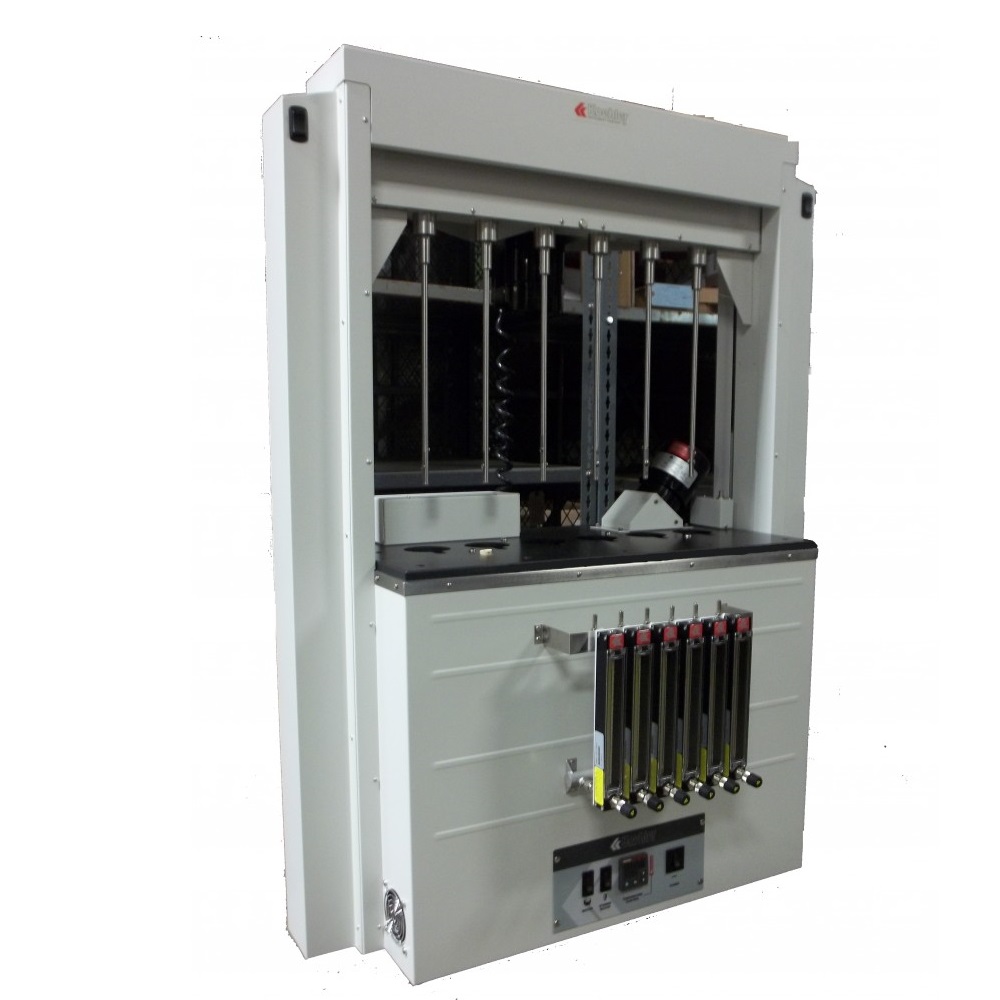

Koehler K29990 Lead Corrosion Apparatus (6 lubricant samples)

Measures the corrosiveness of lubricating oils to lead in the presence of a copper catalyst.

Specifications

- Conforms to the specifications of: FTM 791-5321

- Testing capacity: 6 lubricant samples

- Maximum temperature: 199°C (390°F)

- Temperature control stability: ±0.05°C (±0.1°F)

- Air flow control: 0.94±0.047L/min. (2±0.1 Cu. ft./hr) six (6) flowmeters mounted on a common manifold

Electrical requirements: 220-240V 50Hz, Single Phase, 14.5A

Dimensions:

- lxwxh,in.(cm): 39x25x47 (99x64x119)

- Net weight:  290 lbs (131.5kg)

Shipping information

- Shipping weight: 438 lbs (198.7kg)

- Dimensions: 45x32x61 in. (114.3x81.3x155.0cm)

Included accessories

- Copper Test Panels (6)

- Lead Test Panels (6)

- Mounting Hardware for Panels

Additional accessories

- K29910 Borosilicate Glass Sample Tube

- 250-000-16F ASTM 16F Thermometer - Range: 85 to 392°F

- 250-000-16C ASTM 16C Thermometer - Range: 30 to 200°C

- K29920 Lead Test Panels

- K29930 Copper Test Panels
