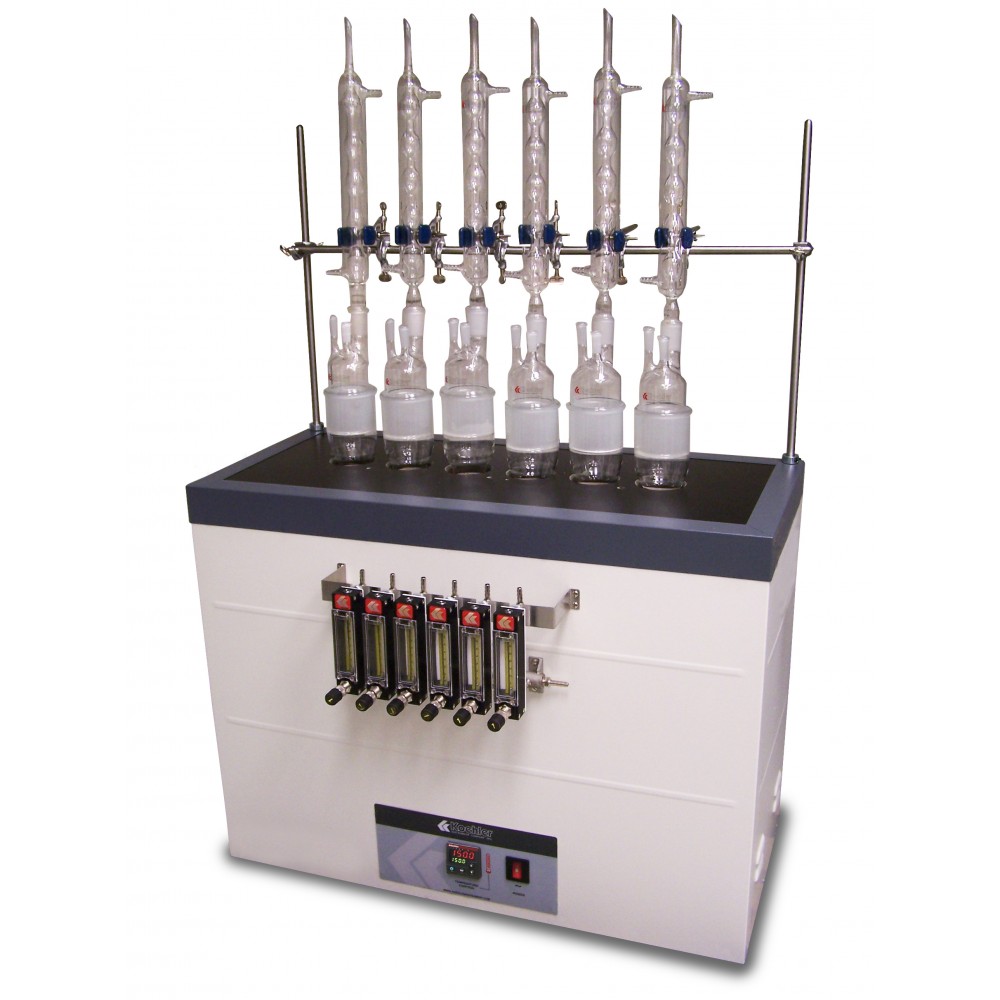

Koehler K35000 Corrosiveness and Oxidation Stability Test Apparatus (6 test cells; 3L/h and 5L/h)

Evaluates the ability of a lubricant to resist oxidation and the formation of corrosive acid compounds by subjecting a sample to accelerated oxidation conditions in a catalytic environment.

Specifications

 -Conforms to the specifications of: ASTM D4636, D5968, D6594; FTM 791-5307, 791-5308; IHC BT-10; DIN 51394

- Capacity: 6 test cells

- Temperature range: 125 to 750°F (51.7 to 399°C)

- Temperature control stability: ±1°F (±0.5°C)

- Air flow rate: 3L/h and 5L/h (dual range flowmeters)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 15.9A

Dimensions

 - lxwxh,in.(cm): 321⁄2x141⁄2x411⁄2 (83x37x105)

- Net weight: 271 lbs (122.9kg)

Shipping information: Shipping weight: 396 lbs (179.6kg)

Dimensions: 42x27x32 in. (106.7x68.6x81.3 cm)
