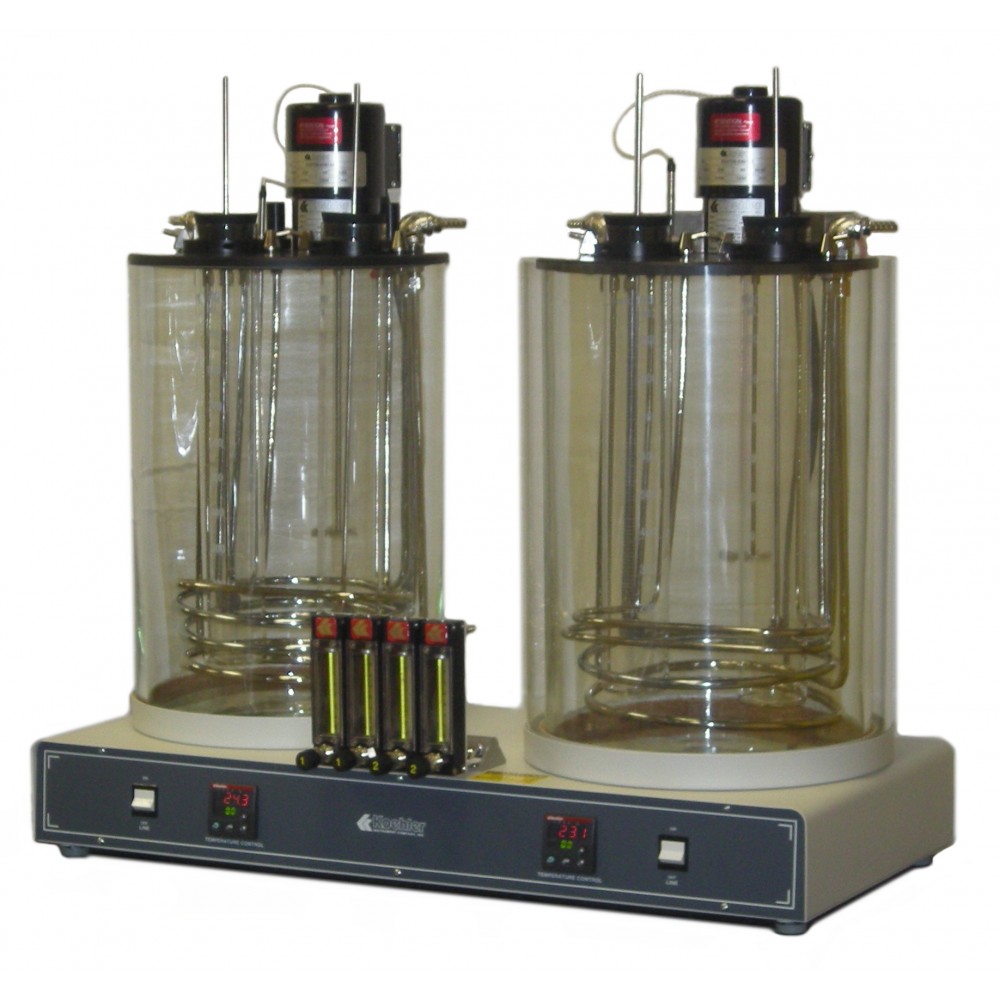

Koehler D892/D6082 Foaming Characteristics Test Apparatus (Dual twin)

Foaming of lubricating oils in applications involving turbulence, high speed gearing or high volume pumping can cause inadequate lubrication, cavitation, overflow and premature oxidation.

Specifications

- Conforms to the specifications of: ASTM D892, D6082; IP 146; DIN 51566; FTM 791-3211; NF T 60-129

- Temperature control:

  + Digital setpoint and displays °C/°F switchable

  + Built-in overtemperature cut-off protection

- Bath temperature:

Left (Cold) bath: External chiller required to perform Sequence I and III at 24°C

Right (Hot) bath: Ambient to 150°C (302°F)

- Air flow rate: 94mL/min and 200mL/min

- Bath capacity: 9 gal (38.5L) each

Dimensions

- lxwxh,in.(cm): 32 1⁄4x15x31 1⁄4 (82x38x79.4)

- Net weight: 108 lbs (49kg)

Shipping information

- Shipping weight: 309 lbs (140.2kg)

- Dimensions: 45x28x56 in. (114.3x71.1x142.2 cm)

Included accessories

- Test cylinders, 1000mL (4)

- Diffuser stones, calibrated and certified (4)

- Air delivery tube assemblies (4)

- Air outlet tubes (4)

- Rubber stoppers (4)

- Bath jars (2)

- Support rack (1)

- Acrylic safety shield, 18"
