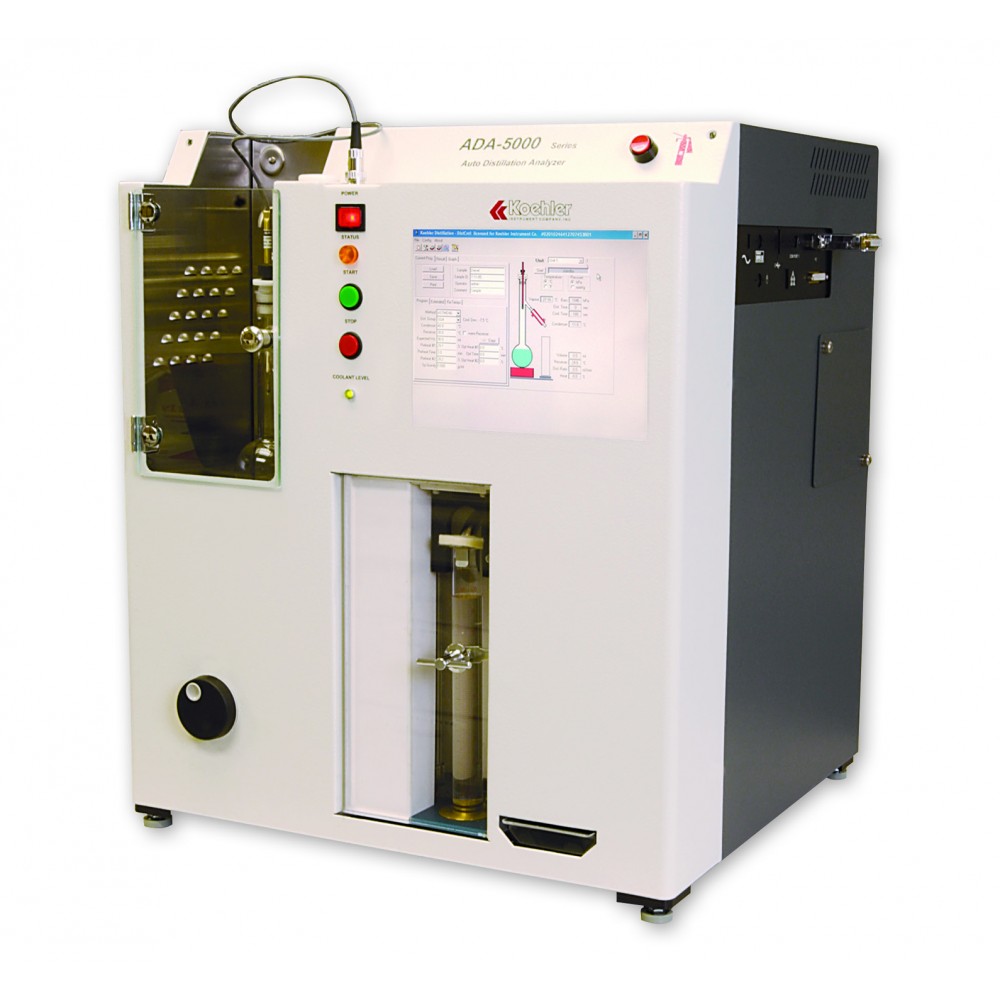

Koehler K45604 Automatic Distillation Analyzer (0-450°C; ±0.1°C)
Manufacturer: Koehler Model: K45604 Guarantee: 12 Month - Contact
The Koehler Automatic Distillation Analyzer is designed to perform optimal distillation analyses of gasolines, fuels, oils, solvents, aromatics, napthas, kerosenes, hydrocarbons, and other volatile products to ensure conformity to rigid quality control standards.
Specifications
Conforms to the specifications of: ASTM D86, D285, D850, D1078, D4737; D189 Section 10; DIN 51751; ISO 3405; IP 123; IP 195; JIS K0066; JIS K2254; NF M 07-002
Temperature distillation range: 0 to 450°C (±0.1°C accuracy)
Condenser: -5 to 60°C (±0.1°C accuracy); closed loop system
Receiver chamber: 0 to 60°C (±0.1°C accuracy)
Distillation parameters
Distillation rate: 2 to 15mL/min in 0.1mL increments, user selectable
Receiver volume: 0 to 100mL (±0.01mL accuracy)
Barometic pressure: range 550 to 900 mm Hg (±1 mm Hg accuracy)
Environment: Operates at 0 to 25°C (113°F)
Electrical requirements: 230V 50/60Hz 10A
Dimensions: LxWxH,in.(cm): 21x21.5x27.75 (53.3x54.6x70.5)
Net weight: 230 lbs (91kg)
