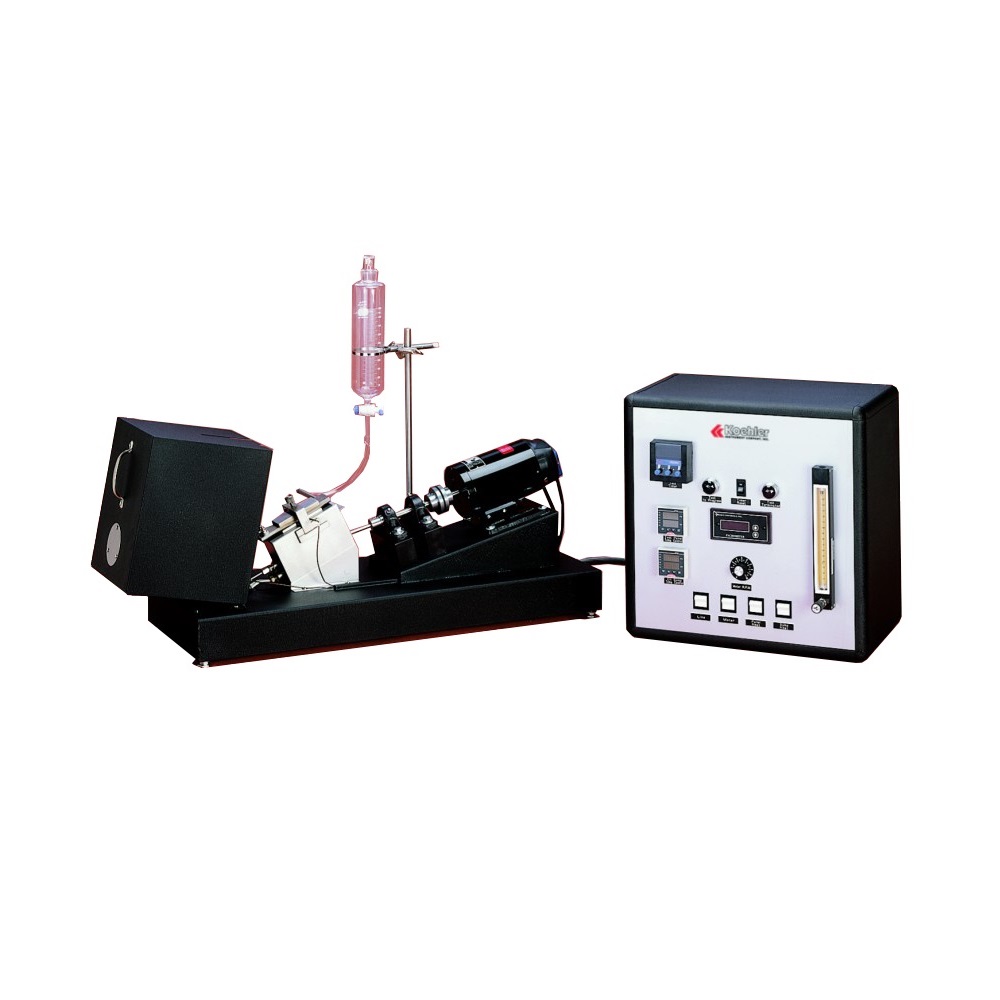

Koehler K50119 Panel Coking Test Apparatus (0.35L, with cycle timer)

Determines the tendency of finished oils to form coke when in contact with surfaces at elevated temperatures for short periods.

Specifications

- Conforms to the specifications of: FTM 791-3462

- Maximum temperature: Test panel: 400°C (752°F)

                                        Sample oil: 210°C (410°F)

- Temperature control: Separate controls for test panel and oil temperature, with digital °C/°F digital setpoint and display

- Splashing rate: 0-1800rpm, with digital display

- Timer: 0-99.9 hr variable countdown

- Flowmeter range: 0.2-1.0L/hr

- Oil reservoir capacity: 0.35 liter

Electrical requirements: 220-240V 50/60Hz, 5A

Dimensions

- lxwxh,in.(cm): Test unit: 32x18x21 (81x46x53)

                         Control cabinet: 18x12x18 (46x30x46)

- Net weight: Test unit: 50 lbs (22.7kg)

                     Control cabinet: 25 lbs (11.3kg)

Shipping information

- Shipping weight: 283 lbs (128.4kg)

- Dimensions: 43x27x54 in. (109.2x68.6x137.2cm)

Additional accessories

- K50101 Aluminum Test Panel

- K50102 Stainless Steel Test Panel (Type 321)
