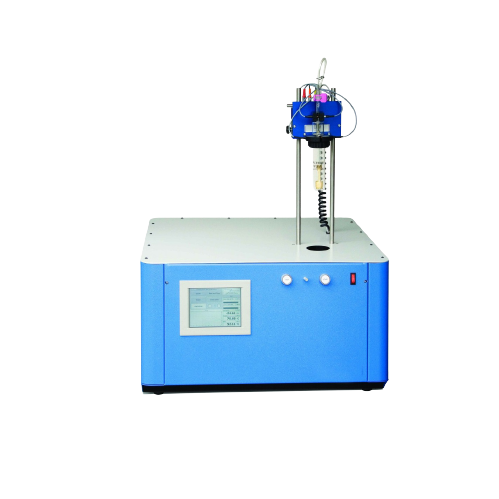

Koehler KLA-4-TS Automatic Cold Filter Plugging Point Analyzer with Touch Screen (0.06°C; ±0.1°C, One-stage)

Determines the highest temperature at which a given volume of diesel, biodiesel or heating fuel fails to pass through a standardized wire mesh filtration device in a specified time when cooled under specified conditions.

Specifications:

Conforms to the specifications of: ASTM D6371; IP 309, 419; EN 116

Temperature Range: One-Stage: +60 to -45°C Two-Stage: +60 to -80°C

Resolution: 0.06°C Accuracy: ±0.1°C

Repeatability/Reproducibility: as per standard test methods or better

Data storage: 60,000 analyses

Electrical requirements: 115V±15%/60Hz 220V±15%/50 to 60Hz

Dimensions:

- WxDxH,in.(cm): 26 x 23 3⁄4 x 31 1⁄2 (66x60x80)

- Net weight: 150 lbs (68kg)

Shipping Information

Shipping weight: 267 lbs (121.1kg)

Dimensions: 32x30x43 in. (81.3x76.2x109.2cm)
