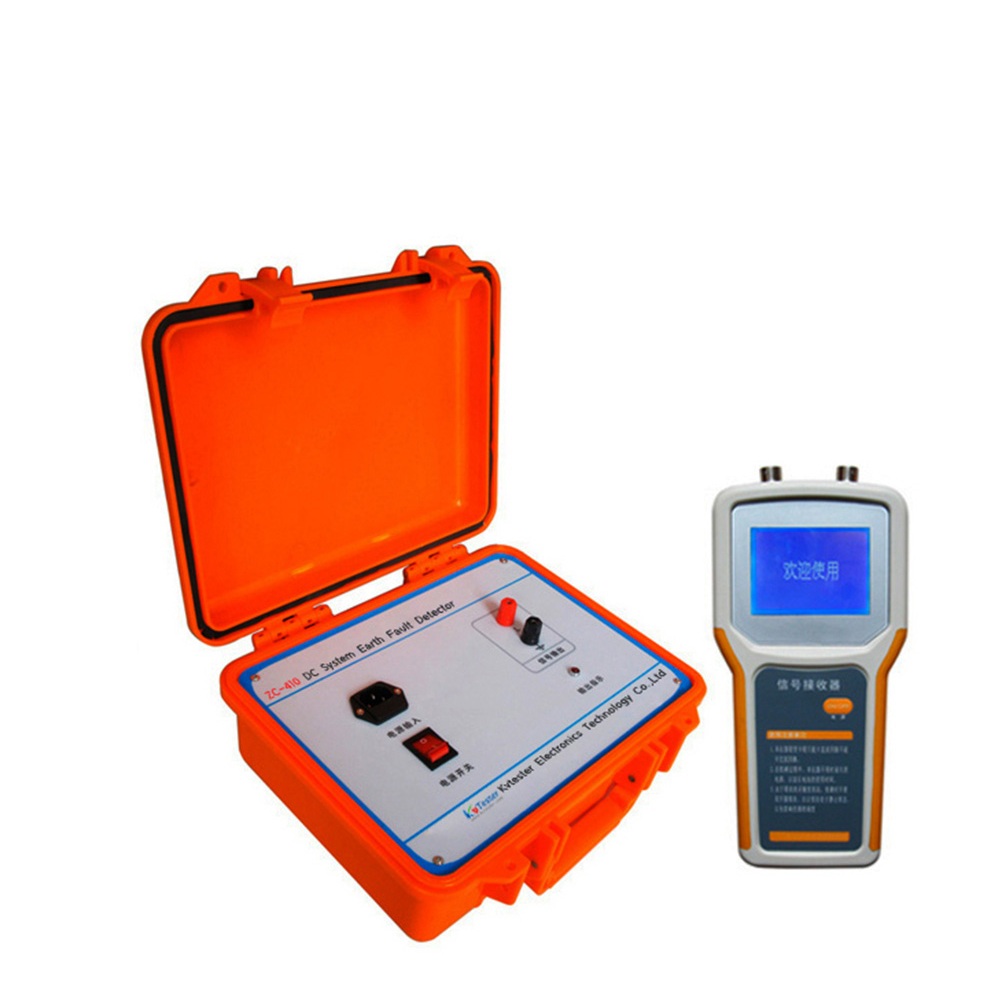

KVTESTER ZC-410 DC ground fault detection device
Manufacturer: KVTESTER Model: ZC-410 Origin: China Guarantee: 12 Month - Contact
Parameter :
* Signal generator
+ Output signal frequency 2.5Hz
+ Signal no-load output voltage ±20V±5%
+ Signal voltage amplitude error ＜5%
+ Output terminal shock resistance capability 400V DC impulse
+ Supply voltage AC220V±10%
+ Voltage frequency 50Hz±5%
+ Input insurance 2A
+ Dimension 275×225×100mm
*Signal receiver
+ Signal current measurement sensitivity 0.5mA
+ Display of receiver number 0～19
+ Dimension 195mm×100mm×30mm
+ Dimension 38mm×69mm×30mm
