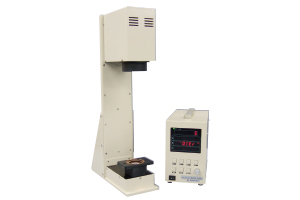

Kyoritsu Electric AFD-3500 Aperture Area Meter (-2.10 ~ +2.10 EV, ±0.04EV)
Manufacturer: Kyoritsu Electric Model: AFD-3500 - Contact
Measuring object: Areas of apertures (Lens for SLR camera)
Measuring item: Difference of EV from standard caliber
Aperture diameter: φ32 to φ1
Measuring rang: -2.10 to +2.10 EV
Measurement accuracy: ±0.04EV
Frequency of measurement: 0.5s
Calibration: 20 point criteria aperture
Power supply: AC100 ~ 240V (50/60Hz)・90VA
Dimensions
Light receptor part: 300(W) x 551(H) x 300(D) mm・8kg
Indication part: 130(W) x 215(H) x 290(D) mm・5kg
External interface: RS232C or USB
