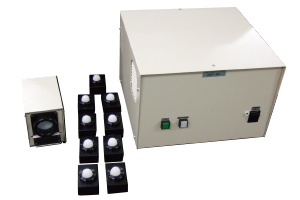

Kyoritsu Electric DEF-9E Flash light distribution tester (0,006～2 klx, 1～5,000 klx)

Measuring objects: LED flash light, LED fixed light and , Xenon flash light source

Measuring point: 9 points

Measuring range

Maximum luminance: ( LED) 0.006～2 klx, (Xe) 1～5,000 klx

Exposure: ( LED) 0.012~8,000 lx･s, (Xe) 0.19~9,999 lx･s

Flash duration: ( LED) 2~4,000ms, (Xe) 0.01~400ms

Guide number: ( LED) 0.078~63.80 Gno, (Xe) 0.25~50 Gno

F number: ( LED) 0.078~63.80Fno, (Xe) 0.25~50Fno

Aperture value AV: ( LED) -7.36～+12.00 AV, (Xe) 0～+10.00 AV

Setting items

Measuring distance: 0.5-5.0m

Film sensitivity:25,50,100,200,400,800,1600,3200,64,160,1000

Flash count:1~30 times(Pre-flash,0~29 times)

Measuring accuracy: ±0.1EV

Power supply: AC100~240V (50/60Hz)/90VA

Dimensions

Light receptor part: 42(W)×63(H)×50(D)mm・0.25kg(at 1 unit)

Control part: 306(W)×200(H)×300(D)mm・10kg

External interface: RS232C
