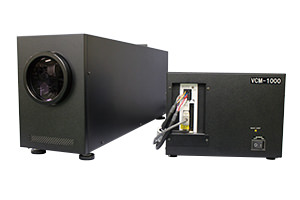

Kyoritsu Electric VCM-1000 Collimator (80–1,500 cd/㎡)

Focus position: Infinity - 300mm

Chart size: 135(W) x 102(H) mm

Chart type: Siemens star chart (9°)

Lens used: φ100mm f=500mm

Light source: White LED

Luminance face size: 121(W)×96(H)mm

Luminance: 80-1500 cd/㎡

Unevenness of luminance: ±25%

Power supply: AC100 ~ 240V (50Hz/60Hz)・75VA

Dimensions:

Control unit 272(W)×210(H)×175(D)mm・5kg

Light source unit 182(W)×346(H)×738(D)mm・17kg

External interface: RS232C

Max speed: 120mm/s

Style of speed adjust: 1~100% (Pitch 1.2mm/s)
