KYORITSU 1052 Digital Multimeter

Name: KYORITSU 1052 Digital Multimeter
Brand: KYORITSU
Price: 2330391.3000000003 MMK
Availability: OutOfStock

ManufacturerKYORITSU

Model1052

2,330,391 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Mode:MEAN/RMS
DCV:600.0mV/6.000/60.00/600.0/1000V
ACV[RMS]:600.0mV/6.000/60.00/600.0/1000V
DCA:600.0/6000μA/60.00/440.0mA/6.000/10.00A
ACA [RMS]:600.0/6000μA/60.00/440.0mA/6.000/10.00A
Ω:600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
Continuously monitored:600.0Ω
Checkdiode:2V
C:10.00/100.0nF/1.000/10.00/100.0/1000μF
F: 10.00~~9.999/9.00999.9Hz/0.90099.99/90.0~~99.99kHz
Temperature::-50~ 600ºC(withK-typeTemperatureprobe)
Other Features:DataHold (D/H),AutoHold(A /H), RangeHold (R/H)...
Source:R6P(1.5V)× 4
Size:192 (L)×90 (W)×49 (D)mm
Volume.560g
Accessories:Battery,probe,Manuals

High Accuracy, High Performance and Reliable Measurements
•	0.09% basic DC accuracy
•	Large display with 6,000 counts
•	True-RMS Measurements
•	True-RMS or MEAN value detection mode can be selected *
•	Low-pass filter for motor drive measurements
•	User calibration function

Safety design for industrial use
•	Complies with IEC 61010-1 CAT.IV 600V, CAT.III 1000V
•	Terminal shutter to prevent incorrect insertion of test leads in current terminals
•	Very wide operating temperature range from -10 to 55ºC

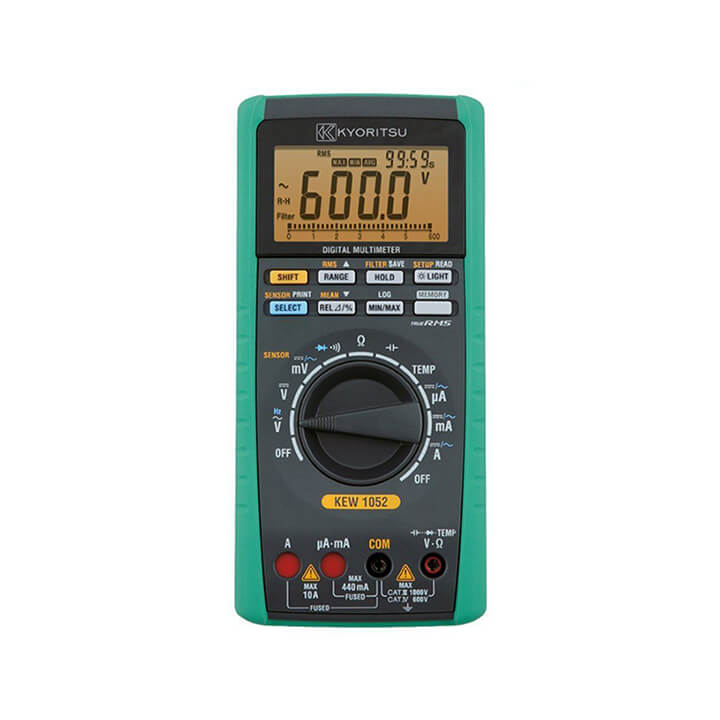

(Photo: 1052)


Reliable support for data management *
•	Large data internal memory *
		KEW 1052: 1,600 data (logging), 100 data (manual)
•	Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set) *

* Only for KEW 1052

KEW 1051

KEW 1052

Detection mode

RMS

MEAN/RMS (switch)

DC V

600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])

|±0.09%rdg±2dgt (Basic accuracy)

AC V [RMS]

600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pf 600mv="" 11m="" 50pf="" 6v="" br=""> 10MΩ<50pf 60="" 600="" 1000v="" span="">

|±0.5%rdg±5dgt (Basic accuracy)

DC A

600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.2%rdg±2dgt (Basic accuracy)

AC A [RMS]

600.0/6000µA/60.00/440.0mA/6.000/10.00A

|±0.75%rdg±5dgt (Basic accuracy)

600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ

|±0.4%rdg±1dgt (Basic accuracy)

Continuity buzzer

600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)

Diode test

2.000V

|±1%rdg±2dgt
Open curcuit voltage: <3.5v approx="" 0="" 5ma="" measuring="" current="" td="">

Capacitance

10.00/100.0nF/1.000/10.00/100.0/1000µF

|±2%rdg±5dgt (Basic accuracy)

Frequency

10.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

|±0.02%rdg±1dgt (Basic accuracy)

Temperature

-50~600ºC

|±2%rdg±2ºC (with the use of K-type Temperature probe)

Other functions

Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),
Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,
LCD backlight
