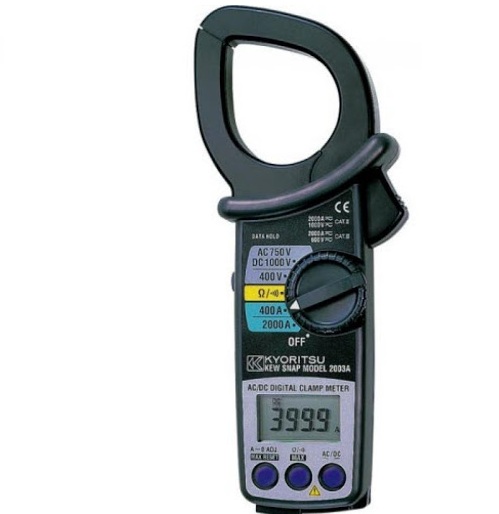

KYORITSU 2003A Digital Clamp Meter (2000A)

AC A: 400A/2000A (0 - 1000A)

±1.5%rdg±2dgt [50/60Hz]

±3%rdg±4dgt [40 - 500Hz]

±5%rdg±4dgt [500Hz - 1kHz]

2000A (1001 - 2000A)

±3%rdg±2dgt [50/60Hz]

DC A: 400/2000A ±1.5%rdg±2dgt

AC V: 400/750V

±1.5%rdg±2dgt [50/60Hz]

±1.5%rdg±4dgt [40Hz - 1kHz]

DC V: 400/1000V ±1%rdg±2dgt

Ω: 400/4000Ω ±1.5%rdg±2dgt

Continuity buzzer: buzzer sounds below 50±35Ω

Conductor size: Ø55mm max.

Frequency response: 40Hz - 1kHz

Output: Recorder: DC400mV against AC/DC400A

DC200mV against AC/DC2000A

Safety Standard: IEC 61010-1 CAT IV 600V , CAT III 1000V

IEC 61010-2-032

Power source: R6 (AA) (1.5V) × 2

Dimensions: 250(L) × 105(W) × 49(D)mm

Weight: 530g approx.

Included Accessories: 7107A (Test leads); 9094 (Carrying Case); R6 (AA) × 2; Instruction Manual

Optional Accessories: 7256 (Output cord)
